Why the Cruisemaster DO35 Wins the Offroad Hitch Debate

Australia's outback does not forgive weak links. Every corrugated dirt track, creek crossing, and off-camber descent puts your tow coupling under forces a standard 50mm ball hitch was never engineered to survive. Standard 50mm ball couplings have an important place in the market, but their limitations have given rise to articulating all-terrain couplings. The benefits are obvious: as you bump along undulating tracks, the vertical movement of the coupling removes stresses from your equipment. Tackling a low-range track with a standard ball coupling has bent towbars and cracked A-frames written all over it.

That is why serious off-roaders have been making the switch, and the Cruisemaster DO35 has become the benchmark they switch to. This guide compares the DO35 against its main rivals, so you can make an informed decision before your next adventure.

Key Takeaways

• The DO35 is the industry standard for good reason: The fact that the DO35 is the standard hitch on almost all high-end off-road caravans and trailers speaks volumes. If the top builders trust it, you should too.

• Full articulation keeps your rig safe: The DO35's articulating hitch rotates 360 degrees sideways and 70 degrees up and down, which makes towing on rough terrain safer and also helps avoid the tow vehicle from rolling if the trailer overturns. Prioritise this specification when comparing any offroad hitch.

• ADR compliance is non-negotiable: The DO35 V3Plus delivers 360 degrees of axial articulation, with a minimum 70 degrees on other axes, and is fully ADR 62/02 compliant, including an automatic secondary lock. Always verify ADR compliance before buying any coupling.

• Three-year warranty and a national service network: Cruisemaster off-road couplings come standard with a 3-year warranty, plus a network of approved repairs and service agents Australia-wide. That support network matters enormously when you are 1,000 km from a city.

Quick-Start Prioritisation Framework

Start here if you are:

• New to offroading: The DO35, its Checklock cap makes it foolproof to confirm you are locked and ready.

• Travelling solo: The DO35, the self-aligning drop-on pin means you rarely need a second person to hitch up.

• On a tight budget: The ARK XO, a legitimate offroad-rated option that fits a standard 50mm ball, though with less long-term refinement than the DO35.

• Towing over 3.5 tonnes: Skip the DO35 and move to the Cruisemaster DO45 or DO65 instead.

How the DO35 Compares to Each Rival

The DO35 vs. the Standard 50mm Ball

The 50mm ball is the entry point, not the destination. If you want to be safe and clear of any legislation, and you have an offroad caravan, you need a coupling that is not a 50mm ball. That is why hitch manufacturers developed hitches without a ball, such as the Cruisemaster DO35. Offroad hitches have become the standard for offroad caravans and are rapidly replacing the 50mm ball hitch, even for highway touring caravans.

The practical case is simple. A ball coupling locks your towbar and A-frame into a rigid relationship on uneven ground, loading both components with enormous twisting forces. The DO35 converts that stress into smooth rotation. If you have a camper trailer or caravan that ever leaves the bitumen, this upgrade pays for itself the first time you avoid a cracked chassis.

The DO35 vs. the ARK XO Coupling

The ARK XO coupling is a genuine offroad-rated product and a solid budget option. A key practical advantage is that, given it uses a 50mm ball, there is no need to switch coupling if you have multiple trailers in use.

That flexibility sounds convenient, but it comes at a cost. The DO35's pin-based drop-on system is specifically engineered to eliminate ball-height alignment issues entirely. Made from forged laser-cut stainless steel and high-quality polyurethane, the precision casting of the DO35 has been brought together to increase its strength whilst reducing weight. The updated DO35 hitch is over 50% stronger than the outgoing model. The ARK XO is a capable hitch, but its construction and long-term durability trail the DO35 at comparable price points, particularly under repeated corrugation stress.

The DO35 vs. the McHitch

The McHitch is the DO35's most credible competitor, and the comparison deserves an honest treatment. Two of the most popular 3.5-tonne options in Australia are the McHitch 3.5-Tonne Easy Fit Automatic Coupler and the Cruisemaster DO35 V3Plus. Both excel in tough Australian conditions, but they offer different experiences.

The McHitch's headline feature is hands-free automatic coupling; you simply reverse onto the tapered shaft and it locks itself. That sounds ideal, until you are on a steep, rutted track with your trailer sitting at a slight angle. The DO35 wins for sheer simplicity and forgiveness on uneven ground. Reliability and maintenance both favour the DO35, with its greaseable design and strong user feedback on long-term use giving it the edge for many owners.

In my experience, the McHitch's automatic mechanism is brilliant in a flat driveway and noticeably fussier in the bush. Long-term owners back this up. One owner who purchased a McHitch found it to be a bit fussy when disconnecting, then purchased a caravan with a DO35 and found it much easier to use.

Pro Tip: If you have previously used a McHitch and found it frustrating to disconnect under load or at an angle, the DO35's manual-but-forgiving drop-on system will feel like a revelation. The self-aligning cone and positive lock engagement do the hard work for you.

The DO35 vs. the Treg Polyblock

The Treg (or Tregg) polyblock hitch is a traditional choice that has been fitted to Australian camper trailers for decades. It has one major weakness: precise alignment is required to couple it, and that becomes genuinely miserable on soft sand or uneven ground. The DO35 was an unbelievable improvement over the Treg. On the same driveway, in the same type of offroad situations, and with a reverse camera, one owner achieved 100% alignment on the first try, every time, by himself.

Coming from the Treg hitch, one experienced reviewer was absolutely gobsmacked at how much easier the DO35 is to use. They are simple to take on and off, lock in easily, are completely silent, and articulate exactly as needed. The Treg has its fans, but the performance gap in genuine offroad conditions is significant and well-documented.

What Makes the DO35 V3Plus the Right Choice

Materials and Build Quality

Forged steel, high-quality polyurethane, laser-cut stainless steel, and precision casting have been brought together to increase the strength of the coupling yet also reduce weight. This combination matters because a lighter coupling means lower nose weight impact, while the forged components deliver the structural integrity needed under sustained load.

Zinc-nickel corrosion protection with a black E-coat finish provides long-term durability off-road. For anyone travelling in coastal or wet environments, that corrosion resistance is a genuine long-term differentiator.

The Checklock Safety System

The patented 'Checklock' Cap doubles as both dust protection and a foolproof safety check, the cap will only fit onto the coupling when the lock is activated. If the cap does not fit, you are not ready to tow. This single feature eliminates the possibility of driving off with an unsecured coupling, a failure mode that has caused real accidents with less thoughtfully engineered products.

Pro Tip: Make checking the Checklock cap part of your pre-departure routine. If it fits, you are locked and sealed against dust. If it does not fit, stop immediately and re-engage the locking mechanism before moving anywhere.

Weight Distribution Compatibility

Many modern articulating hitches like the Cruisemaster DO35, are specifically engineered to work with weight distribution hitches (WDH). However, most traditional poly block couplings are not compatible, as a WDH can restrict their articulation. If you run a WDH for highway stability, the DO35 handles both worlds. The ARK XO explicitly states it is not compatible with the Andersen WDH, limiting your future upgrade options.

Ease of Upgrade and Long-Term Support

The Cruisemaster DO35 uses what is considered the standard 4-bolt mounting pattern in Australia, meaning it is really easy to upgrade from a standard ball or poly block type coupling. You do not need to modify your A-frame or purchase an adapter plate, the DO35 simply bolts on where your existing coupling sat.

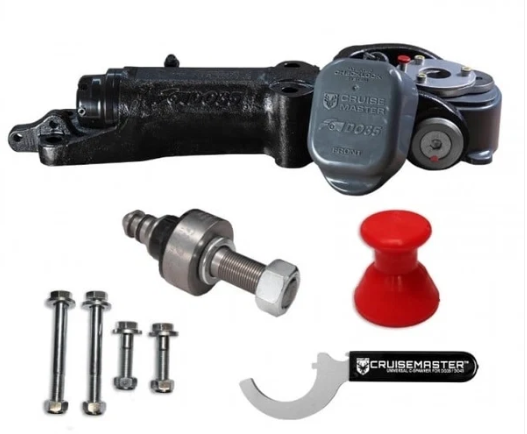

Trailer Camper Australia stocks the full Cruisemaster DO35 V3Plus range, including both the V3-R (without handbrake) and the V3-I (with integrated handbrake), along with accessories including the Bi-Lock security pin for when the van is unattended.

Common Mistakes to Avoid

Buying a Non-Genuine DO35

Buyers have purchased supposed Cruisemaster DO35 couplings online only to receive non-genuine or counterfeit items, which Cruisemaster confirmed as such. Counterfeit items are difficult to identify until received. Fitting non-genuine items to trailers or caravans may void insurance claims. Always purchase through authorised Australian retailers such as Trailer Camper Australia.

Skipping Grease Maintenance

Made from forged laser-cut bushes and is fully greaseable to reduce wear in the toughest of terrains. Skipping grease intervals leads to premature wear and noise. Grease the coupling at least every 5,000 km or after any extended offroad use.

Choosing the Wrong Capacity

The DO35 V3Plus is rated up to 3.5 tonne ATM. While this covers the majority of caravans and camper trailers, users towing heavier off-road rigs must upgrade to the 4.5-tonne DO45 to stay within safe limits. Weigh your van before you buy your coupling, towing over-rated is a legal and safety issue.

Frequently Asked Questions

What does DO35 actually stand for?

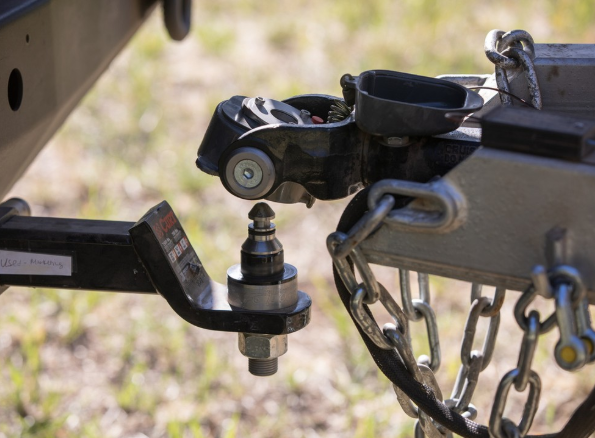

The patented 'Checklock' Cap meaning the articulating all-terrain pin coupling can tow up to 3.5 tonnes. The "drop-on" part refers to the coupling mechanism: you lower the trailer's coupling body down onto a fixed pin on the towbar, rather than reversing a ball into a socket.

How much does the Cruisemaster DO35 cost in Australia?

The DO35 V3Plus typically retails between $430 and $515 depending on the store and model variant. The integrated handbrake version (V3-I) sits at the upper end of that range. Considering the safety, durability, and warranty on offer, most owners consider it outstanding value compared to budget alternatives.

Can I fit the DO35 myself, or do I need a professional?

The Cruisemaster DO35 uses the standard 4-bolt mounting pattern in Australia, making it straightforward to upgrade from a standard ball or poly block coupling. Many owners fit the DO35 themselves with basic tools. That said, if you are changing the coupling on a van with electric brakes and a handbrake setup, having a qualified auto electrician check the wiring connections is worthwhile.

Is the DO35 suitable for on-road towing, or only for offroad use?

While the original concept for the DO35 was focused on off-road use, it has quickly become exceedingly popular on-road as well, making it a great fit for all terrains. The smooth articulation actually reduces coupling noise and harshness on corrugated sealed roads, which is why so many road-touring caravanners have adopted it alongside the offroad crowd.

The Bottom Line

I've seen plenty of offroad hitches come and go, and the DO35 remains the one product I consistently recommend without hesitation. Its combination of forged materials, foolproof Checklock safety, full ADR compliance, 360-degree articulation, and genuine long-term durability at a fair price is a package no single competitor matches across all categories. The McHitch has convenience on its side; the ARK XO has budget-friendliness; the Treg has history. The DO35 has
