ATM, GTM, GVM and GCM Explained for Australian Campers

Planning your first tow, or shopping for a new camper trailer? Before you hitch up and head outback, there are four acronyms standing between you and a legal, safe trip: ATM, GTM, GVM, and GCM. There are now around 938,000 caravans and campervans registered in Australia, a figure that, according to Tourism Research Australia's 2025 data, is up roughly 32 per cent on 2019 and an all-time record. More rigs on the road means more opportunity for weight mistakes. The good news is that once you understand what each term actually means, the numbers start making sense quickly.

Key Takeaways

• ATM is your caravan's ceiling weight when unhitched: ATM (Aggregate Trailer Mass) is your loaded caravan's total weight, measured when it is unhitched and standing on its own. Never exceed it; it is set by the manufacturer and exceeding it is against the law.

• GTM is your caravan's axle load when hitched: GTM is the weight pressing through the caravan's own axles when it is hitched and loaded. It is always lower than ATM because it excludes the tow ball download, which is the portion of weight that transfers onto your tow vehicle's hitch.

• GVM limits your tow vehicle's total weight: GVM is the limit of weight that your car can support, including your car, your passengers, and your tow ball mass. It is a rating set by the manufacturer that you cannot exceed by law. Therefore, weigh your vehicle fully loaded before every trip.

• GCM is the limit for the whole rig combined: Some vehicles cannot tow their maximum rated trailer weight and carry a full load at the same time, because the GCM runs out first. Checking GVM and towing capacity separately is not enough, the GCM ties them together.

Quick-Start Prioritisation Framework

Start here if you are:

• New to towing: Check your ATM first; it is on the compliance plate and tells you your caravan's hard limit.

• Upgrading your rig or adding accessories: Recheck your GVM and GCM, aftermarket gear and water tanks eat into both faster than most people expect.

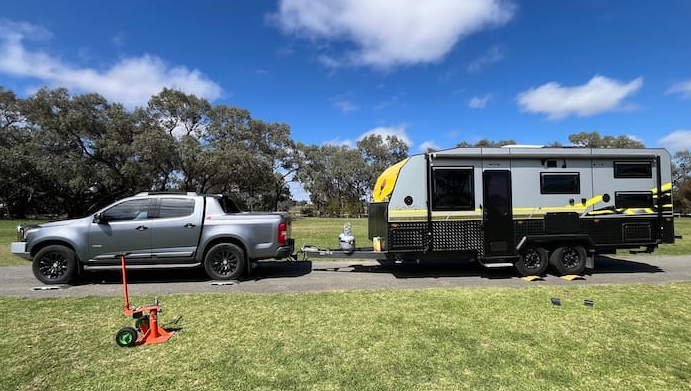

• Planning a long outback trip: Weigh the full rig at a public weighbridge before departing. A public weighbridge will give you the essentials for a few dollars: drive on hitched, unhitched, and car only, and you can work out van weight, ball weight, and car weight.

ATM and GTM: Your Caravan's Two Weight Ratings

What ATM Actually Means

ATM (Aggregate Trailer Mass) refers to the maximum permissible weight of your caravan when fully loaded and ready to tow. It includes everything: gear, water, luggage, and accessories. Think of it as the caravan's individual weight limit, measured when the van is sitting on its jockey wheel, disconnected from the tow vehicle.

ATM is calculated by adding the tare mass of your caravan to your maximum payload. This rating is set by the manufacturer and it is against the law to exceed it. In practice, your payload is often tighter than it looks on paper. On many vans, it is smaller than people expect, and water is the silent killer. A full 95-litre tank is roughly 95 kilograms before you have packed a single tub. Therefore, weigh your van at a certified weighbridge with full water tanks and all your gear packed exactly as you travel.

What GTM Actually Means

GTM (Gross Trailer Mass) is the maximum mass recommended by the manufacturer of your fully loaded caravan when it is hitched to your tow vehicle. The GTM of the caravan is transmitted to the ground by only the caravan tyres and excludes the mass distributed to the towing vehicle through the coupling.

GTM is what your caravan's suspension, brakes, and axles are rated against. Exceed this and you risk tyre blowouts and brake failure on the road. The simple relationship to remember: ATM = GTM + Tow Ball Download.

Pro Tip: Weigh your loaded caravan resting on its jockey wheel, including a full water tank, gas tanks, and everything you would pack to go travelling, to ensure the measured mass does not exceed your specified ATM capacity. Do this before your first trip with any new setup.

GVM: Your Tow Vehicle's Weight Limit

What GVM Includes

GVM is the maximum your vehicle is allowed to weigh fully loaded, vehicle plus passengers, fuel, accessories, cargo, and tow ball mass, as set by the manufacturer. Here is the trap most people miss: the tow ball weight from your caravan counts toward your vehicle's GVM, not just your towing capacity. Tow ball weight counts towards your car's GVM, not just its towing capacity.

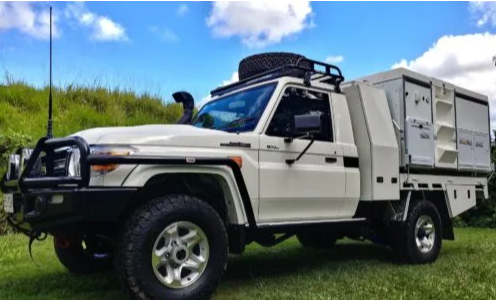

In my experience, this is the number that surprises first-time towers the most. A dual-cab ute that looks like it has plenty of room in its GVM can quickly run out of headroom once you add passengers, a bull bar, a roof tent, and a 200-kilogram tow ball download. In Australia, GVM is a legal limit: exceed it and your vehicle is unroadworthy, your insurance can be voided, and your warranty is at risk. Therefore, calculate your actual loaded vehicle weight before every trip, not just once when you buy the rig.

The Hidden Trap of Tow Ball Weight

The recommended tow ball weight in Australia is about 10 per cent of your aggregate trailer mass or a maximum of 350 kilograms, whichever is the lowest. Getting this number wrong in either direction causes problems. If the tow ball mass is too light the most common result is dangerous sway in the van. Alternatively, if the ball weight is too heavy, it increases the stress on the tow vehicle by adding a heavy load on the rear axle whilst making the front axle lighter. Therefore, aim for 8-12 per cent of your ATM and use dedicated tow ball weight scales to verify it.

Image: Using caravan weight scales can give you peace of mind on the road.

GCM: The Limit for Your Whole Rig

How GCM Pulls Everything Together

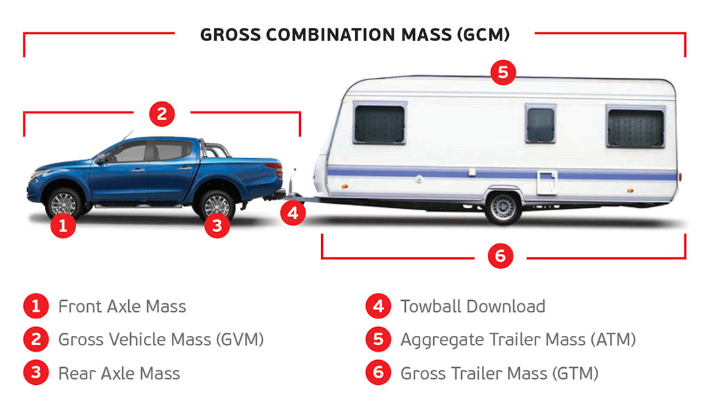

GCM is the maximum allowable total weight of your tow vehicle and caravan together, both fully loaded. It is set by your vehicle manufacturer, not the caravan maker, and it governs the whole rig as one system.

I have found that GCM is the most commonly overlooked figure, particularly among people who have just had a GVM upgrade. A GVM upgrade raises how much your vehicle can carry, but it does not automatically lift your GCM or braked towing capacity. Because the heavier vehicle uses up more of your fixed GCM, an upgrade can actually reduce how much you can legally tow. Always cross-check all three limits: GVM, ATM, and GCM at the same time.

A Practical GCM Example

The RV Buyers Guide towing glossary illustrates this well: take a vehicle with a 3,200 kg GVM, a 2,200 kg tare, a 3,500 kg braked towing capacity, and a 6,000 kg GCM. If you tow a caravan at the full 3,500 kg ATM, the maximum the car can weigh is 6,000 minus 3,500 = 2,500 kg. That leaves only 300 kg for occupants, fuel, the tow ball download, and all accessories combined. You cannot simply go by your vehicle's recommended legal towing capacity because when you increase your GVM, you will have less room in your GCM for the caravan.

Pro Tip: Use a free tool such as Know My Tow's Australian towing calculator to check your GVM, GCM, payload, and tow ball weight against your real load in under 30 seconds, no sign-up required.

The Real Cost of Getting It Wrong

Legal and Financial Consequences

Under Australian road transport laws, operating an overloaded vehicle can lead to it being deemed unroadworthy. Almost all Australian automotive insurance policies contain strict exclusion clauses regarding unroadworthy or overloaded vehicles. If you are involved in an accident and crash investigators determine your vehicle exceeded its GVM, GTM, or GCM, your insurer may have the right to void your claim. That consequence hits regardless of who was at fault.

Being overweight is an offence everywhere in Australia, and enforcement is getting tougher: Queensland police now carry portable scales and issue fines where they used to give warnings, and a NSW roadside operation found close to 40 per cent of caravans were overloaded. Fines vary by state, Victoria ranges from $238 to $1,580 depending on the extent of the overload; South Australia imposes fines up to $591; Tasmania between $130 and $735. Fix your numbers before you leave, not after a roadside stop.

Pro Tip: After fitting any new accessories, roof racks, extra water tanks, or a rear drawer system, reweigh the full rig. Re-weigh after any big change: new drawers, an extra water tank, a different van. Weight creep is real and it accumulates fast.

Frequently Asked Questions

Where do I find my caravan's ATM and GTM?

Your caravan's Tare, ATM, and GTM are on the compliance plate, usually on the drawbar or inside a front boot or door frame. Your car's GVM, GCM, towing capacity, and maximum tow ball weight are in the owner's manual and on the vehicle's build plate. If the van has had a factory or engineering upgrade, always go by the newest plate.

What is the difference between tare weight and ATM?

Payload is simply ATM minus Tare how much you are actually allowed to load into the van. Tare weight is the unladen weight of the trailer, excluding cargo or passengers. In other words, tare is what the van weighs empty from the factory, and ATM is the maximum it can weigh when fully loaded and ready to roll.

Can I increase my GVM to tow a heavier caravan?

You can increase your GVM through a certified upgrade, but it will not automatically solve your towing limits. Upgrading your vehicle's GVM via aftermarket suspension does NOT automatically increase your GCM. If you carry more weight in the vehicle, you will have to tow a lighter caravan to stay under the factory GCM. Always consult a qualified engineer before modifying your setup.

Does my camper trailer have an ATM limit too?

Yes, absolutely. Camper trailers have lower ATMs which lulls people into a false sense of safety. They are easy to overload with water, a fridge, recovery gear, and a rooftop tent, and a small trailer at 120 per cent of its ATM is just as illegal as a big van. At Trailer Camper Australia, each camper trailer lists its ATM, GTM, and tare weight so you can match the right rig to your tow vehicle before you buy.

Know Your Numbers, Then Go Explore

Weight ratings are not bureaucratic red tape; they are the engineering tolerances that keep your rig stable at highway speed on an Australian corrugated dirt road. ATM is your caravan's loaded limit when unhitched. GTM is what the van's axles carry when hitched. GVM is your tow vehicle's maximum loaded weight. GCM is the ceiling for everything combined. Get all four right, verify them on a weighbridge with a full load, and you can head out with confidence.
