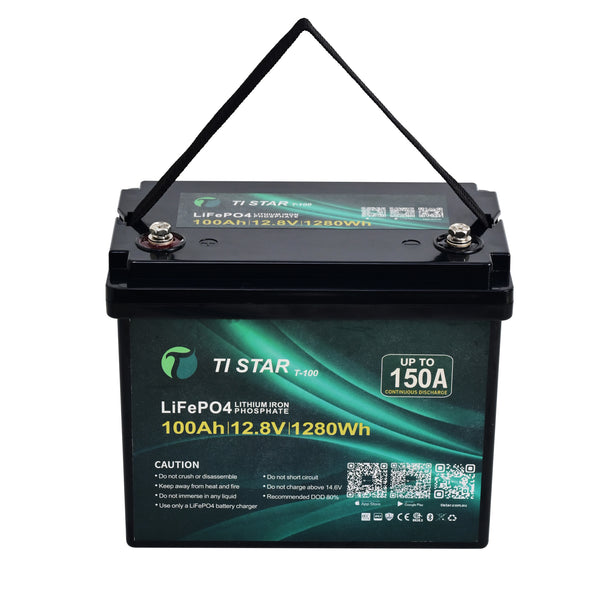

TiStar Smart BMS 12.8V 100Ah LiFePO4 Lithium Battery – Bluetooth, IP67, IEC 62619

The TiStar Smart BMS 12.8V 100Ah LiFePO4 Lithium Battery is a compact, lightweight and high-performance deep-cycle battery designed for caravans, camper trailers, RVs, 4WDs, marine applications and off-grid power systems.

Featuring a Smart Battery Management System (BMS), Bluetooth monitoring, 150A continuous discharge capability, IP67 protection and compliance with IEC 62619 and AS/NZS 3001:2022, this 100Ah lithium battery is designed for reliable power in demanding mobile and outdoor applications.

At just 10kg and measuring 260 × 170 × 212mm, the TiStar 100Ah battery provides a compact alternative to conventional 100Ah lead-acid batteries while delivering 1280Wh of energy.

Key Features

• 12.8V 100Ah LiFePO4 lithium battery
• 1280Wh energy capacity
• Smart BMS with Bluetooth 4.0 for battery monitoring via iOS and Android
• IEC 62619 safety standard tested
• AS/NZS 3001:2022 compliant
• IP67 rated – designed to withstand immersion in up to 1m of water for 30 minutes
• Compact dimensions of 260 × 170 × 212mm, including terminals
• Lightweight design at approximately 10kg
• Built using A-grade LiFePO4 prismatic cells
• 150A continuous discharge current
• Recommended for use with up to a 1500W inverter
• 100A maximum charge current for fast charging
• Up to approximately 90% charge in 1 hour under fast-charge mode
• Protection against overcharge, over-discharge, short circuit, over-temperature and cell imbalance
• Low-temperature charging protection below 0°C
• Discharge operation down to -20°C
• Supports up to 4 batteries in parallel
• 5-year warranty
• Local support and stock from Brisbane

Smart Battery Management System

The integrated Smart BMS continuously monitors and protects the battery during charging and discharging.

Protection features include:

• Overcharge protection
• Over-discharge protection
• Short-circuit protection
• Over-temperature protection
• Cell imbalance protection
• Low-temperature charging protection

The Bluetooth function allows compatible smartphones and tablets to monitor battery information through the TiStar app on iOS and Android.

High-Power 150A Continuous Discharge

With a 150A continuous discharge current, the TiStar 100Ah lithium battery can provide substantial power for caravan and off-grid applications.

The battery has a maximum output power rating of 1920W, with TiStar recommending use with a 1500W inverter.

Fast Charging

The battery supports a maximum charge current of 100A, allowing significantly faster charging when the appropriate charging equipment and fast-charge mode are used.

TiStar specifies approximately 90% charge in 1 hour under fast-charge conditions.

For everyday use, the recommended charging current is 20A.

IP67 Water and Dust Protection

The battery features an IP67-rated enclosure, providing protection against dust and water ingress.

TiStar specifies that the battery can withstand immersion in up to 1 metre of water for 30 minutes, making it suitable for demanding outdoor, caravan and recreational applications.

Compact & Lightweight Design

Measuring only 260 × 170 × 212mm, including terminals, the TiStar 100Ah battery has a compact footprint and weighs approximately 10kg.

This makes it easier to transport and install compared with many conventional lead-acid batteries of similar capacity.

Expandable Battery Bank

Up to four TiStar 12.8V 100Ah batteries can be connected in parallel to increase your available battery capacity.

Important: Before connecting batteries in parallel, ensure each battery is fully charged and that the voltage difference between batteries is less than 0.05V.

Ideal Applications

The TiStar 12.8V 100Ah lithium battery is suitable for:

• Caravans
• Camper trailers
• Motorhomes and RVs
• 4WD touring
• Marine applications
• Off-grid power systems
• Solar power systems
• Inverter applications
• Auxiliary battery systems
• Camping and recreational power

What's Included

• 1 × TiStar Smart BMS 12.8V 100Ah LiFePO4 Lithium Battery

Important Parallel Connection Information

When connecting multiple TiStar batteries in parallel, fully charge each battery before connection and ensure the voltage difference between batteries is less than 0.05V.

Always follow the manufacturer's installation and connection requirements.
