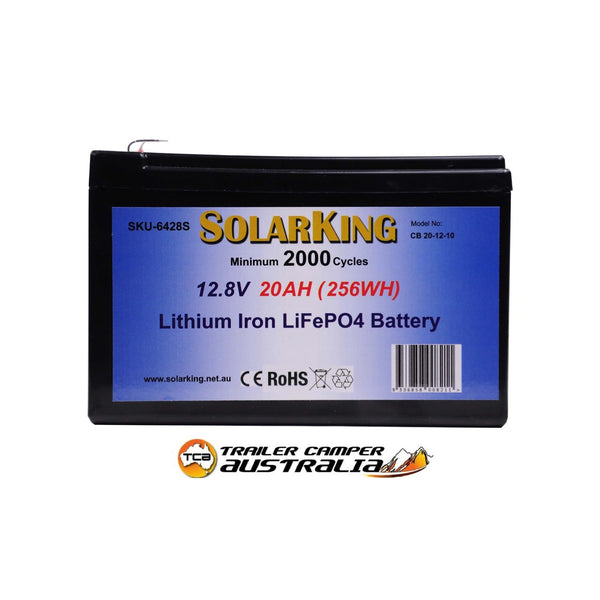

Solarking 20AH Lithium Iron 12V Battery with Advanced BMS

For those thinking it's about time to jump ship to Lithium Battery - Solarking Lithium Batteries now offer an excellent 12V Lithium Battery Range. This battery is ultra lightweight at only 2.16KG. Solarking 20ah Lithium Batteries can be connected in parallel.

SolarKing Lithium batteries are fully sealed with a built in battery management system (BMS) to make sure the battery operates safely. Perfect replacement or upgrade for a traditional lead acid batteries and the life of lithium batteries is up to 3-4 times the life of lead acid batteries. Lithium batteries have a much greater depth of discharge capacity and are half the weight of lead acid deep cycle batteries.

We also stock an excellent range of compatible AC and DC Chargers with Lithium Battery charging profiles.

If you have any questions regarding our range of batteries for caravans, campers, marine, camping or home storage applications please call us on 0458 220 765. Our staff will be able to tailor a package for all types of applications and budgets.

LB-20-12-10 Features:

20AH Lithium
2000+Cycles
Built in advanced BMS
Lightweight
Can be connected in parallel

CB-20-12-10 Specifications

Dimensions 150x100x100mm
Weight 2.16kgs
Operating Temperature Range -20°C ~ +60°C
Voltage 12.8VDC
Amperage 20AH
Max Discharge Rates 10A
Max Continuous Current 10A
Max 10 Second Pulse 15A
Min Charge Current 1A
Nominal Charge Current 3A
Max Charge Current 10A
Charge Voltage 14.8V
Max Charge Voltage 15V
Cycles @ 100% DOD 2000 Cycles
Cycles@ 80% DOD 3000 Cycles
Cycles@ 50% DOD 3500 Cycles
Cycles@ 30% DOD 8000 Cycles
Terminal T4.8
Low Voltage Cut Out 10.0V DC

Note: This battery can’t be used to start motor vehicles or placed in series

Solarking 20Ah 12V Lithium Iron Battery LiFePo4 CB-20-12-10
