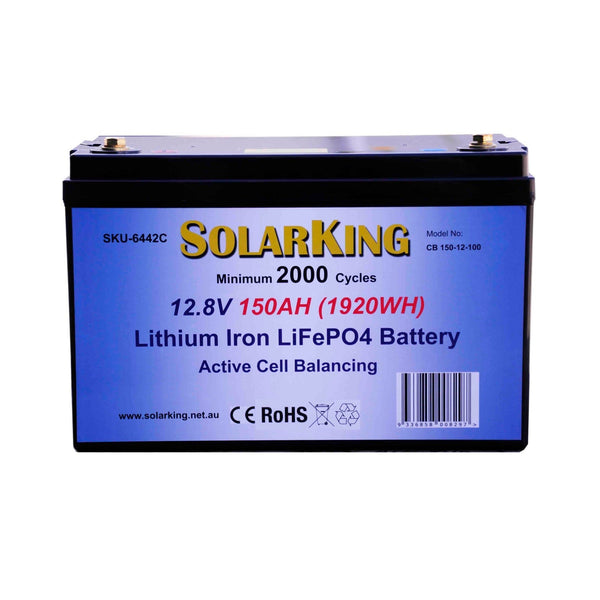

Solarking 150AH Lithium 150AH-12V-100 Battery 6344A

For those thinking it's about time to jump ship to Lithium Battery - SolarKing Lithium Batteries now offer an excellent Entry Level 12V Lithium Battery Range. A trusted Australian Distributor, these batteries offer a 3-year warranty & ARE ULTRA LIGHTWEIGHT AT 13KG. Solar Lithium Batteries can be connected in series or parallel.

New Smaller Case Design at only 334x175x219mm. Model also features 100A Continuous Charge & Discharge current with Active Cell Balancing.

The Solarking CB-150-12-100 now features a 100A BMS with Active Cell Balancing. This balancing technique redistributes charge between battery cells during the charge and discharge cycles, thereby increasing system run time by increasing the total useable charge in the battery stack, decreasing charge time compared with passive balancing, and decreasing heat generated while balancing.

SolarKing Lithium batteries are fully sealed with a built-in battery management system (BMS) to make sure the battery operates safely. Perfect replacement or upgrade for traditional lead acid batteries, and the life of lithium batteries is up to 3 times the life of lead acid batteries. Lithium batteries have a much greater depth of discharge capacity and are half the weight of lead-acid deep-cycle batteries.

We also stock an excellent range of compatible AC and DC Chargers with Lithium Battery charging profiles. This battery would also be an ideal fit for our range of Arkpak Portable Power Battery Boxes.

If you have any questions regarding our range of batteries for caravans, campers, marine, camping or home storage applications, please call us on 0458 220 765. Our staff will be able to tailor a package for all types of applications and budgets.

Solarking CB-150-12-100 Features:

150AH Lithium Iron LiFePo4
2000+ Cycles
Built-in advanced BMS with Active Cell Balancing
Lightweight
Can be connected in series or parallel
Equivalent to 3 or 4 150AH deep cycle lead acid batteries
Note: This battery can’t be used to start motor vehicles

CB-150-12-100 Specifications:

Dimensions: 334x175x219mm
Chemical: Lithium Iron LiFePo4
Product Weight: 13.02kg
Operating Temperature Range: -20°C ~ +60°C
Voltage: 12.8VDC
Amperage: 150AH
Max Discharge Rates: 1C
Max Continuous Current: 100A
Max 3 Second Pulse: 150A
Min Charge Current: 2A
Nominal Charge Current: 30A
Max Charge Current: 100A
Max Charge Voltage: 15.2V
Cell Balancing: 5AH Nominal (8AH Peak) charge & discharge
Cycles @ 100% DOD: 2000 Cycles
Cycles@ 80% DOD: 3000 Cycles
Cycles@ 50% DOD: 3500 Cycles
Cycles@ 30% DOD: 8000 Cycles
Low Voltage cut out: 10.0VDC
Maximum In-series voltage: 30.4V
Water/Dust Rating: IP-65
Self-Discharge : 3% Per Month
Cell Type: Cylindrical
Cell Connection: Laser Welded
Terminal: T8 - Side Terminals

CB-150-12-100 Package Includes:

1x 6442C Solarking LiFePo4 Lithium Battery

Note: This battery can not be used to start motor vehicles.

Solarking 150 AH 12 V Lithium Battery LiFePO4 100 A BMS Active Cell Balancing
