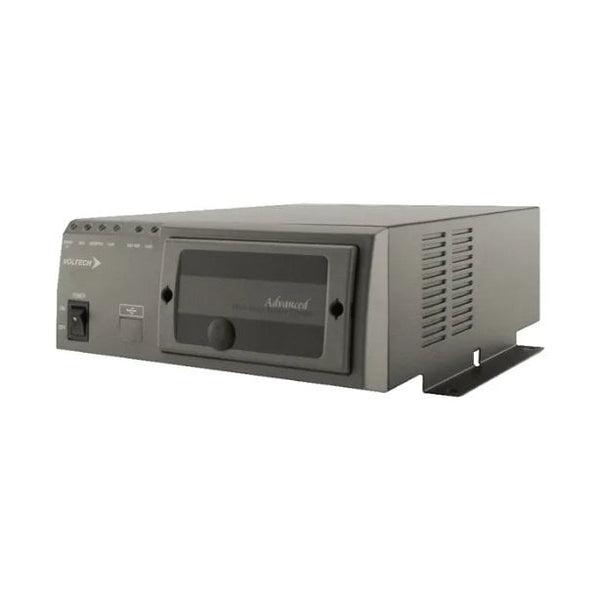

Voltech 20Amp 240V-24V Charger BC-2420P
The Voltech range of chargers also have a Lithium setting for LiFePO4 type batteries.
The MAX Output Current can also be adjusted in 10% increments to suit the size of battery being charged.
Features:
•5 Stage Charger
•Includes soft start feature for very discharged batteries
•Adjustable output current (concealed selector)
•Can be used as a power supply
•Suitable for lithium(LiFePO4) batteries
•User defined programmable charging (via PC)
•Microprocessor controlled charging
•Manual or auto equalization
•MCU Monitoring
•Temperature sensor included
Specifications:
Weight: 3.1kg
Warranty: 24 months
| MODEL | BC-2420P |
| OUTPUT CURRENT |
20A |
| INPUT VOLTAGE | 200-240VAC 50 HZ |
| CHARGE VOLTAGE |
|
| WET | 28.8V |
| LiFePO4 | 29.2V |
| AGM | 28.6V |
| GEL 1 | 28.2V |
| GEL 2 | 28.6V |
| CALCIUM | 30.2V |
| USER 1 (PROGRAMMABLE) | 24-32V |
| USER 2 (PROGRAMMABLE) | 24.32V |
| EQUALIZATION | 31.0V |
| FLOAT VOLTAGE | 27.0/27.2/26.4/27.4/27.6/27.6 |
| SOFT START VOLTAGE | <21.0V |
| SOFT START CURRENT | 1/2 OF MAX |
| EFFICIENCY | 83% |
| NO. OF OUTPUTS | 2 |
| DIMENSIONS (W.OUT BRACKET) | 260X200X80 |
| DIMENSIONS (BRACKET) | 288X240X90 |
