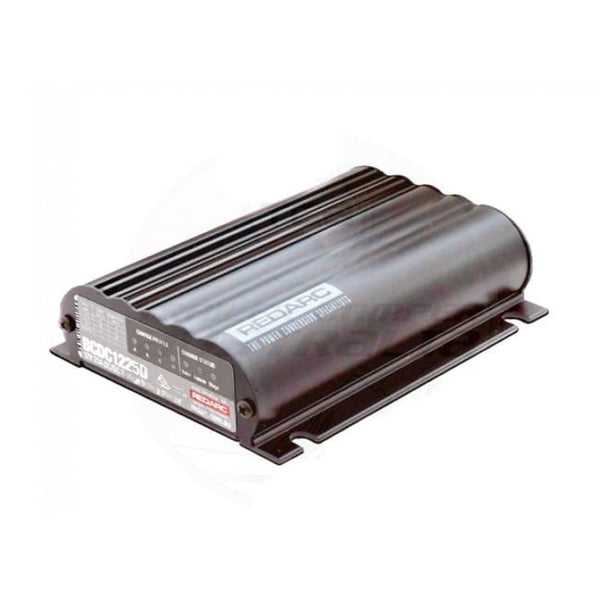

Redarc DC to DC 25amp Battery Charger with MPPT Solar Regulator

The next generation in DC to DC charging technology,The REDARC BCDC1225D In-vehicle Battery Charger feature new and exciting features over previous models that make it one of the most advanced dual battery chargers currently on the market. Designed to keep your auxiliary battery charged whilst driving or with portable solar panels when you’re parked, the system charges your auxiliary battery to their optimum levels, using multi-stage DC DC charging.

REDARC's BCDC1225D has seen advancements in both performance & efficiency with the built-in Maximum Power Point Tracking (MPPT) solar regulator allowing the unit to charge from both solar and the alternator simultaneously, as well as the new 'Green Power Priority' feature which will select solar charging as priority, meaning less load on the alternator.

Postage Australia Wide - Installs available in Canberra ACT - Full details give us a call. Highly recommended charger for AGM, Lithium & Lead Crystal Batteries.

Works With All Battery Types

This highly versatile charger features the same patented charging profiles as it’s predecessor and is compatible with both 12V and 24V battery systems, with a new lithium charging profile for charging AGM, Gel, Standard Lead Acid, Calcium and LiFePO4 batteries. Another great feature of the new BCDC1225D is its ability to work alongside standard and ECU-controlled variable/smart alternators.

Suitable for the majority of applications and battery bank ranging from 75-200AH, the REDARC BCDC1225D boasts multiple levels of fault protection and acts as a dual battery isolator. Should the voltage get too low, the start battery will be protected and with its compact size, ease of install and fully sealed casing it's unobtrusive and can handle the roughest tracks in outback Australia and even deep water crossings at Cape York; water, dust and vibration are no match for the in-vehicle DC smart charger

Features:

Separate DC and solar charging inputs
Maximises the performance and life of your auxiliary battery
Simultaneous DC and solar charging with Green Power Priority
Suits 12V/24V standard and variable voltage/smart alternators
Suitable for AGM, GEL, standard lead acid, calcium and LiFePO4 batteries

Specifications:

Input (Operating) Voltage	9 - 32VDC
Output System Voltage	12VDC
Maximum Charging Voltage	15.3V
Output Current Rating (Cont.)	25A
Input Current (Max.)	25A
Input Fuse Rating	40A
Output Fuse Rating	40A
Type Approval	E-Mark
Warranty	2 Years
Standby Current Draw	<100mA
Output Power	375W
Width (mm)	120
Height (mm)	37
Length (mm)	165
Weight (kg)	0.85

Redarc BCDC1225D 25A DC to DC 12v Battery Charger MPPT Solar Input
