Enerdrive 12V Dual Battery Switch
The mini battery switch that outperforms switches twice its size.
Blue Sea Systems' new m-Series Battery Switch, available in four practical models, is a great choice for most boaters. Its “mini” size, flexible mounting options, and current-carrying capacity make this battery switch a wise choice. The m-Series switch is versatile enough to meet just about any battery switch application for small and medium-size boats. It is very compact, measuring less than 3″ by 3″ (7.6cm X 7.6cm), making it ideal for installations where there are size and space constraints. In spite of its size, its current-carrying capacity exceeds many standard-size switches.

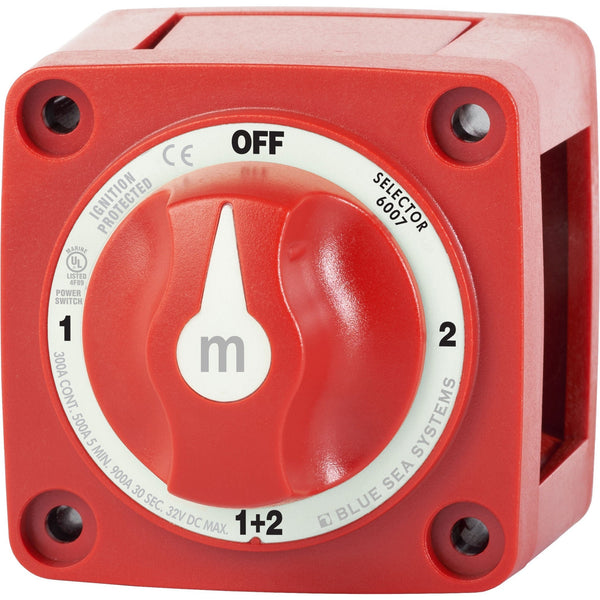

| m-Series Mini Selector Battery Switch – Red | |
|---|---|
| Note: Specifications subject to change without notice. | |
| Switch Type | Selector 4 Position |
| Color | Red |
| Switch Positions | 4 |
| Battery Combine | Yes |
| Alternator Field Disconnect | No |
| Maximum Voltage | 32V DC |
| Continuous Rating | 300A |
| Intermittent Rating | 500A (5 min) |
| Cranking Rating 10 Sec | 1500A |
| Cranking Rating 1 min | 775A |
| Battery Inputs | 2 |
| Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept #10 Screw |
| Terminal Stud Size | 3/8″ – 16 (M12) |
| Terminal Stud Torque | 120 in-lb (13.56 Nm) |
| Weight | 0.35 kg |
