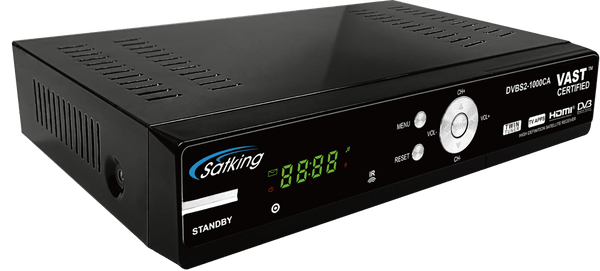

SatKing DVBS2-1000CA High Definition VAST Satellite TV Receiver

The SatKing DVBS2-1000CA is Australia’s best VAST satellite TV receiver. The SatKing VAST receiver has all the market-leading features that you would expect from SatKing.  Compact size, built-in signal finder, 12/240V operation, twin tuner, learning remote control, and low power consumption.

Fully designed in Australia, this top-of-the-range receiver brings a new level of features to the VAST satellite TV platform.

This SatKing VAST decoder has catch-up TV built in. No longer will you miss your favourite program; you can simply stream the program you have missed later.

Connect an external hard disk drive (up to 3TB) via the 2x USB ports and take advantage of the twin tuners; you can record two different channels and watch a third program from within a network at the same time.

Features:

• Australian VAST Certified
• Built-in TV streaming apps
• High Definition MPEG4 Compliant
• Twin Tuner, Record and 2 Channels and Watch a 3rd from Within a Network
• USB PVR Ready 3TB Maximum External Hard Disk Drive
• Pause & Rewind Live TV
• Smallest VAST receiver on the market
• Low Power Consumption with Energy Saving Function
• 8 Day EPG with Series Link
• Front channel display and control keys
• Signal Finder with Beeper
• Optional WIFI Dongle & Infrared Target
• Subtitles Supported (Closed Captions)
• 1080P Upscaling
• Learning Remote
• Metal Case
• Over-the-Air Software Download Supported
• Easy to Use with Auto-tuning and One-Touch Recording

Technical Specifications:

System

• Processor: 2GHz
• Flash memory: 256MB NAND
• RAM: 512MB DDR3

Tuner

• Standard: DVBS-EN300421, DVBS2-EN302307
• Input Frequency: 950 ~ 2150 MHz
• RF Input Level:- 65~-25 dBm
• Symbol Rates DVBS: 2-45,000
• Symbol Rates DVBS2: 2-45,000
• Demodulation: QPSK, 8PSK, 16APSK, 32APSK
• FEC Mode QPSK: DVBS 1/2, 2/3, 3/4, 5/6, 7/8
• FEC Mode 8PSK: DVB-S2 1/2, 2/3, 3/4. 3/5, 4/5, 5/6, 8/9, 9/10
• LNB Power: 13V Vertical, 18V Horizontal, Off, 500mA Max
• LNB Presets: 10700, 10750, 11300, 9750/10600, User Define
• 22kHz Tone: 22KHz +/- 2KHz
• DiSEqC: Versions 1.0/1.2
•

Video Decoding

• Decoding: MPEG-2 MP@ML, MP@HL HD, MPEG-4 H.264/H.265 HEVC
• Video Format: Pal B/G
• Aspect: 16:9, 4:3
• Video resolution: 576i, 576p, 720p, 1080i, 1080p

Audio Decoder

• Standard: ISO/IEC 13818-3
• Decoding: MPEG-1 Layer I&II, Dolby AC3, MPEG4-HE-AAC+ V2
• Output mode: Stereo, Mono, Left, Right
• Output Impedance: Low
• Dolby:Dolby Digital & Dolby Digital Plus
• Sampling frequency: 32,44.1, 48KHz
• Output Levels: 32 Levels

Encryption

• Irdeto Version: Secure Silicon 3.2HL
• CAS: Version 3
• Smart Card: ISO 7816
• Software Upgrade: Over-the-Air & USB

Connections

• Satellite Input: 1x F Type Female 75Ω
• HDMI: 1x 1.4B
• AV Out: 3x RCA
• Digital Audio: 1x Optical S/PDIF, 1x Coaxial
• USB: 2x USB 2.0A Type 500mA Max
• Ethernet: 1x RJ-45
• IR Extension: 1x 3.5mm Jack
• DC Input: 1x 2.1mm Jack

Power

• Input Voltage: 8-16VDC
• Consumption: 10W Max

Power Adaptor

• Input: 100-240VAC
• Output: 12VDC, 1.5A

Physical

• Dimensions: 220x153x44mm
• Weight: 460grams
• Temperature Range: 0-40°

Warranty

• Duration: 12 Months on STB, power supply, and remote

Accessories

• Remote: 1x Remote with Learning Functions
• Power Pack: 1x 12VDC 1.5Amp
• User Manual: 1x A5
• Batteries: 2x 1.5VDC AA
• AV Cable: 1x HDMI Cable 1M, 1x RCA Cable 1M

*Streaming TV requires an internet connection (data charges may apply). Available apps are subject to change without notice.
