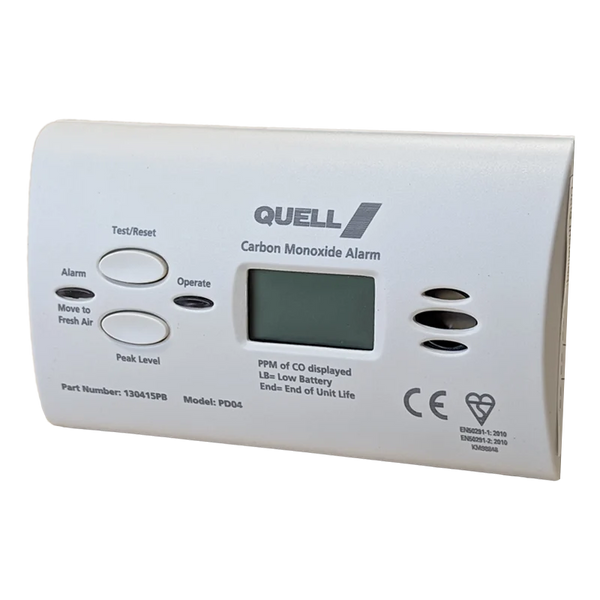

Quell PD04 Carbon Monoxide Digital Display Alarm

Protect your family and your RV with the Quell PD04 Carbon Monoxide Digital Display Alarm. Designed to detect dangerous levels of carbon monoxide (CO), this easy-to-install alarm provides added protection in caravans, motorhomes, campervans and other recreational vehicles.

What is Carbon Monoxide?

Carbon monoxide (CO) is a highly poisonous gas that has no taste, colour or smell. It can be produced by gas appliances, heating and cooking systems, vehicle engines, fuels and blocked chimneys.

The Quell PD04 detects the presence of carbon monoxide and provides an early warning when dangerous levels are detected. A CO alarm is designed to supplement a smoke alarm, not replace one.

Key Features

Digital display – Clearly displays carbon monoxide levels detected by the alarm.
Peak level memory – Records the highest CO concentration measured since the last reset.
Self-activation – Automatically activates when attached to the mounting bracket.
Test/Reset button – Tests the alarm circuitry and horn and resets the peak-level memory.
LED indicators – Green, red and amber indicators show operating, alarm and fault status.
10-year service life – Provides long-term carbon monoxide monitoring.
Deactivation switch – Allows the alarm to be safely deactivated for battery disposal at the end of its service life.
3 × AA batteries included – Ready to install.
10-year limited warranty – Long-term peace of mind.

LED Indicators

Green LED: Flashes every 30 seconds to indicate normal operation.
Red LED: Pulses with the alarm when a dangerous level of carbon monoxide is detected.
Amber LED: Indicates a fault condition.

Specifications

Specification	Details
Model	Quell PD04
Alarm type	Carbon Monoxide (CO)
Display	Digital CO level display
Battery	3 × AA batteries
Battery included	Yes
Service life	10 years
Dimensions	120 × 75 × 40 mm
Warranty	10-year limited warranty

Ideal for: Caravans, camper trailers, motorhomes, campervans and RVs where additional protection against carbon monoxide is required.
