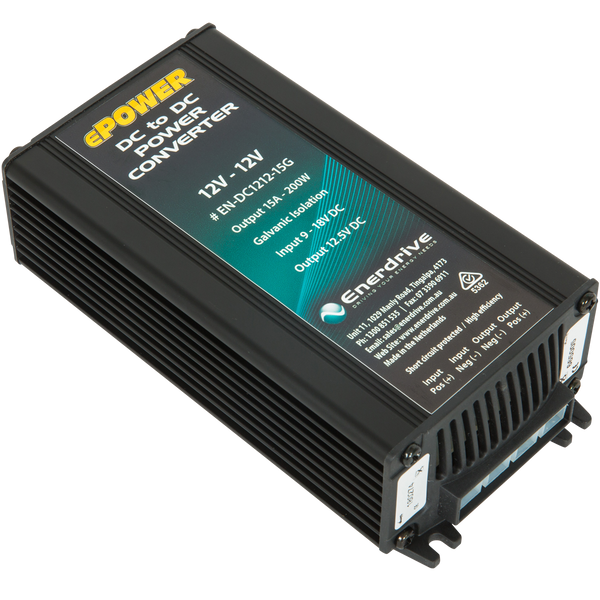

Enerdrive12V – 12V / 15A Gal Iso EN-DC1212-15G

Features

These compact and rugged DC to DC converters with galvanic isolation units omit little heat making them safe and convenient for installation where space is hard to come by. Enerdrive’s DC to DC galvanic isolation converters use Switch Mode technology with protection against over-current / overload, over-heating, over-voltage and reverse polarity connection. Units can be paralleled multiple times to increase overall output. Models with 27.6V output can also be used as a 24V battery charger.

The terminals are standard 6.3mm blade connectors requiring 6.3mm spade terminals on the cabling (note uninsulated spade ends required to ensure fitment into terminals)

Applications

Recreational vehicles
Commercial vehicles
Industrial systems
Communication vehicles
Maritime applications
Aviation applications

Specifications

EN-DC1212-15G
Input (VDC)	9 – 18
Output (VDC)	12.5
Current (A)	15
Load (W)	200
Weight	600g
Dimension LxWxH	182mm x 8mm8 x 49mm
Note: Specifications subject to change without notice.
