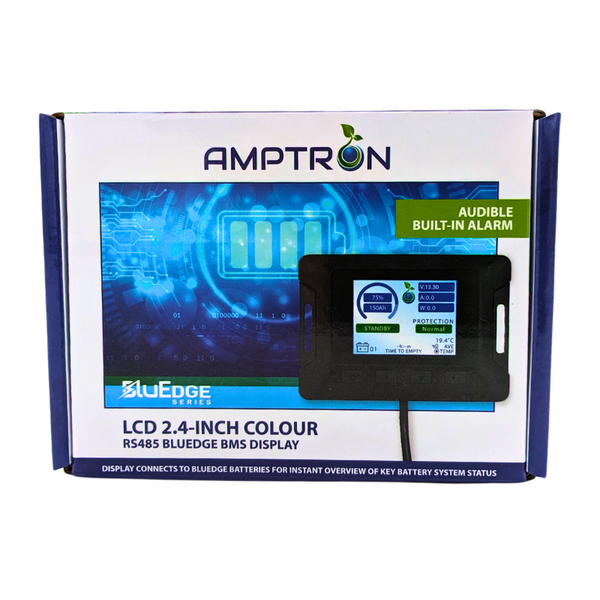

Amptron BluEdge 2.4" Full-Colour RS485 LCD BMS Display

Quick and easy setup to display key battery information such as State of Charge (both % and Ah), Voltage, Current draw, Temperature, Cycles etc.

Suitable for compliance with AS/NZS 3001.2:2022 and AS/NZS 3004.2:2014 standards.

Built-in audible alarm that will trigger on adverse battery conditions prior to battery shut-down.

Conveniently view battery alarm codes.

View consolidated battery information for a bank / group of connected BluEdge batteries in one convenient display (for models that supports parallel communication). For the 24V, 36V and 48V batteries – dive down into cell voltage data for each connected battery in the group.

Easy fixing with flexible flush mounted design and range extendable via common UTP network cables. *** Please note, the display unit requires a compatible communications adapter cable to connect to a battery. Refer to the table below for the compatible cable for each battery model.

Battery model	Protocol	Communication cable adapter required for display	Parallel communication supported?
AT-LFP-12-100-BTC-BV10	RS485 MODBUS RTU C JBD Amptron custom – SUP – (Parallel or Series)	AT-BE-CAN-RS485-COMM-BV01	Yes, up to 4 batteries
AT-LFP-12-200-BTC-BV10	RS485 MODBUS RTU C JBD Amptron custom – SUP – (Parallel or Series)	AT-BE-CAN-RS485-COMM-BV01	Yes, up to 4 batteries
AT-LFP-12-200-BTC-DV10	RS485 MODBUS RTU C JBD STD	AT-BE-CAN-RS485-COMM-AV01	No
AT-LFP-12-400-BTC-BV10	RS485 MODBUS RTU C JBD Amptron custom – SUP – (Parallel or Series)	AT-BE-CAN-RS485-COMM-BV01	Yes, up to 4 batteries
AT-LFP-12-400-BTC-DV10	RS485 MODBUS RTU C JBD STD	AT-BE-CAN-RS485-COMM-BV01	No
AT-LFP-24-100-BTC-BV10	RS485 MODBUS RTU C JBD ESS	AT-BE-CAN-RS485-COMM-BV01	Yes, up to 16 batteries
AT-LFP-24-200-BTC-BV10	RS485 MODBUS RTU C JBD ESS	AT-BE-CAN-RS485-COMM-BV01	Yes, up to 16 batteries
AT-LFP-36-100-BTC-AV10	RS485 MODBUS RTU C JBD ESS	AT-BE-CAN-RS485-COMM-BV01	Yes, up to 16 batteries
AT-LFP-48-100-BTC-AV10	RS485 MODBUS RTU C JBD ESS	AT-BE-CAN-RS485-COMM-BV01	Yes, up to 16 batteries
