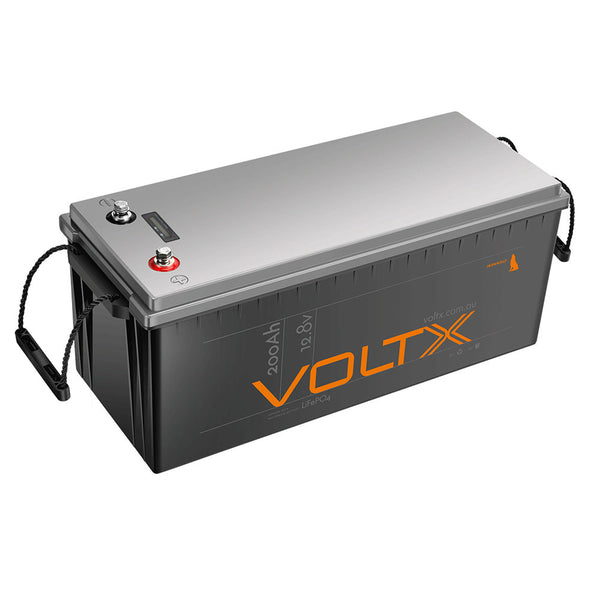

VoltX RV 12V 200Ah Lithium Ion Battery with BMS

The VoltX 12V 200Ah Lithium Battery LiFEPO4 Plus ensures a nicely powered-up RV, no matter where your road trip takes you. Yes, VoltX batteries are not just excellent in campsites. They're fantastic for recreational vehicles like caravans, camper trailers, and campervans too! Now, this is what they mean when they say reliable battery.

VoltX has made some bold upgrades to their premium PLUS lithium battery range to deliver added efficiency. This 200Ah capacity battery now supports both parallel and series connections to accommodate high-power requirements. Composed of prismatic cells that are more stable than cylindrical ones, all batteries under VoltX are designed to deliver a consistent stream of power ideal for running electronic devices.

Best of all, this LiFEPO4 battery is backed by a built-in battery management system for optimal performance of each cell in your battery. This allows for minimal maintenance during charging as well, providing automatic protection against overcharging, undercharging, overheating, and short circuits. Need to check your voltage level? See it in one quick glance with the fitted power voltage display.

It's time to take road trips to another level. With a VoltX battery by your side, there are no limits to where your wheels can take you.

SPECIFICATIONS:

Nominal Voltage:	12.8V
Nominal Capacity:	200Ah
Charging Voltage:	14.2-14.6v
Float Voltage:	13.8V
Rated Energy:	2560Wh
Charge Method:	CC/CV
Charger:	14.2-14.6V
Standard Charge Current:	20A
Max. Charging Current:	100A
Standard Discharge Current:	200A
Max. Continuous Discharge Current:	200A
Max. Discharge Current 5 sec:	600A
Approx Life Cycles:	3000
Working Temperature Range:	Charge: 0°C to 45°C \| Discharge: -25°C to 65°C
Storage Temperature:	-10°C to 50°C
Battery Cells:	Prismatic
Bolt Type:	Hexagon
Bolt Material:	Iron nickel-plated
Series Connection:	Yes, Max 6 batteries
Parallel Connection:	Yes, Max 6 batteries
Float Voltage:	13.8V
Overcharge Protection:	14.6V
Overcharge Recovery:	14.2V
Overdischarge Protection:	11.2V
Overdischarge Recovery:	11.6V
Cell Grouping:	4S2P
Case Material:	ABS Plastic
Warranty in Years:	5

DIMENSIONS & WEIGHT

Bolt Terminal Size:	M8 (Ø16) x 5(H)mm
Dimensions (includes the terminal posts):	522(L) x 238(W) x 223(H)mm
Weight:	22kg

WHAT'S IN THE BOX

1 x	Lithium Battery
