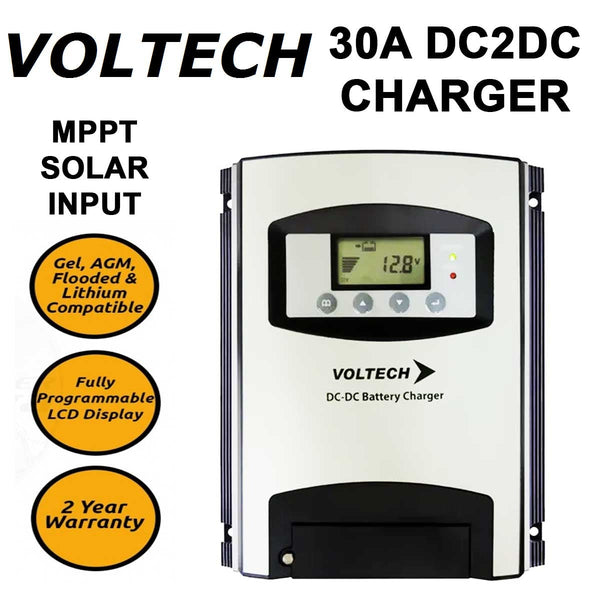

Voltech 30Amp DC 2 DC Battery Charger + MPPT Solar Input

The SCM030 is designed to fully charge AUX batteries using either the vehicles power (DC to DC Booster) or Solar Panel (MPPT) sources.

It will Automatically detect when power is available & begin charging. Either input can be set to "Priority Source". Users can also program the minimum DC Input voltage & the input voltage at which charging will recommence i.e (8-13V DC).The SCM030 is designed to fully charge AUX batteries using either the vehicles power (DC to DC booster) or solar panel (MPPT) sources.

Users can also program the minimum DC Input Voltage and the Input Voltage at which charging will recommence i.e. (8-13V DC). Charging voltages can be adjusted to suit different battery types including Lithium LiFePO4. Can charge 12V batteries from 24V solar

Features:

Dual charge input source for PV and DC
PV input range from 10V-50V (40Amp Max, 500Watt Max)
DC input range from 10V-50V (recommend > 30A) with User programmable low voltage disconnect and reconnect (DC source input)
Automatically selects between PV and DC inputs
User programmable bulk charge voltage
User programmable float charge voltage
Multi stage charging with timer protection
Temperature Compensated Float charge
MPPT charging algorithm to achieve maximum power draw from PV
Suitable for numerous Battery types (12V systems)
LCD display for Battery Voltage, Charging Current, Input Voltage ( PV/DC), Input Current (PV/DC)
Reverse Polarity Protection (Electronic)
Over Current Protection

Specifications:

Dimensions: 240x205x88mm
Weight: 1.9kg

Voltech 30A 12V DC - DC Battery Charger MPPT Solar 10V - 50V
