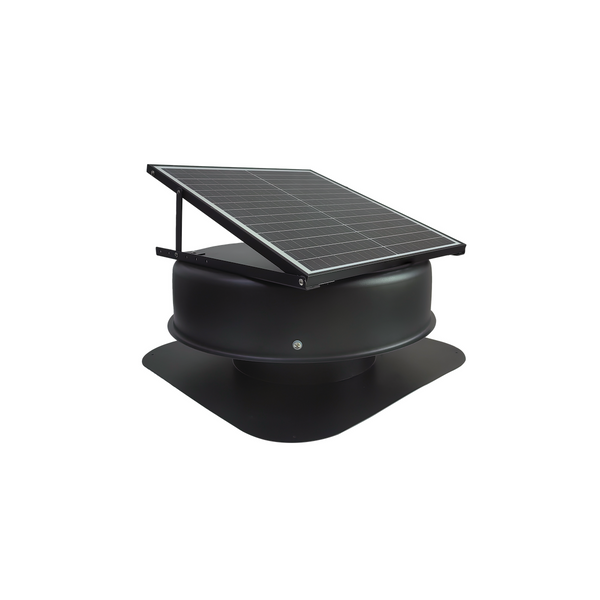

Solarking Solar Roof Mounted Fan - Heat Extraction - Ventilation Fan V3

Australian Summers continue to get hotter, as do our Homes & Workplaces. Beat rising power costs by using Solar powered Roof Ventilation.

Currently, wind driven “Whirly Birds” can only exhaust around 100CBM (Cubic Metres) of air per hour while the SolarKing 320MM solar fan can pump 2100CBM of air per hour, more than 20x the air movement. The SolarKing 320MM Solar Fan can be easily mounted on either tile, Colorbond or flat roofs. The unit also has an adjustable tilt solar panel for use on non north facing roofs or flat roofs. You can even use multiple SolarKings on larger installs such as garages and sheds.

How does the Solarking Solar Fan work?

If you’ve ever been in your roof during the warmer months, you know just how hot the space can get. The sun beats down on the roof surface and heats up the stagnant air inside the roof. Building codes require homes to have a passive vent system. Insulation can only do so much before the heat also is too much for the roof bats. That’s where a motorized fan comes in.

The SolarKing Ventilated Fan placed high on the roof will pull air in from outside, force the cooler air to move through the entire roof space and escape through the SolarKing solar fan. In summer months, SolarKing Fan can reduce the temperature in a roof by up to 30 degrees.

The SolarKing Heat Extraction Fan consumes free solar energy, which means no running cost ever.

By reducing your roof temperature, your reliance on air conditioning will reduce and lower your energy bills.

Solar Fan Features

• Reduced air conditioning use means lower energy bills
• Keep your home cooler in summer
• Extracts 20x more air than a Whirly Bird
• Reduces roof temperature by up to 30°
• Solar power = no running costs ever
• Thermostatic control prevents heat loss during cooler months
• Brushless DC motor for quiet operation & long life
• Corrosion resistant, suitable for coastal regions
• Easy Installation, no electrician required
• Reduces condensation build up in your roof
• Suits tile, Colorbond and flat roofs

Solar Fan Specifications

Capacity: 2100 CBM Per Hour
Motor: 35 Watts, 6-19VDC, 1600rpm Max, Brushless Motor with Double Shielded Ball Bearings

Solar Panel Type: Monocrystalline PV, Heavy Duty Frame, 3mm Tempered Glass

Solar Panel Output: 35 Watts, 18VDC
Fan: 300mm Balanced 5 Blade With Low Resistance
Noise: <45dBA Automatic
Automatic Shut Off: <25° Celsius +/- 5%

Product Dimensions: 565x565x260mm

Flashing Dimensions: 565x565x1mm
Product Weight: 7.8Kgs
Construction: Aluminium Top Cover, Aluminium Body, Steel Brackets and Stainless Steel Fasteners
Colour: Black Powder Coated
Warranty: 2 Year Warranty (10 Years on Solar Panel)

Download Solarking Solar Fan Mounting Instructions

FOR TILE ROOF

FOR METAL ROOF
