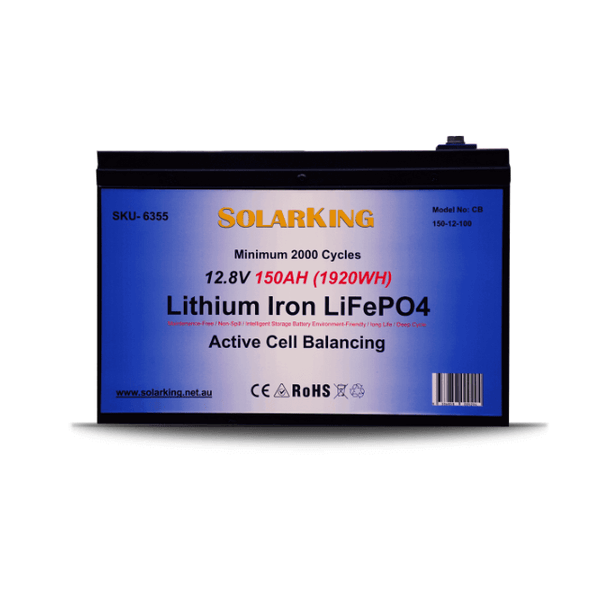

Solarking 12.8V 150AH Solarking Lithium Iron Battery Metal Case CB-150-12-100

The battery storage of the future is SolarKing lithium batteries. Compared to conventional lead acid batteries, lithium batteries have an unparalleled cycle life—more than four times as many cycles—and are significantly lighter.

Excellent for usage in home storage, camping, caravans, and ships. For added safety, the batteries have an integrated battery management system and are completely sealed.

You can keep using your current deep cycle lead acid battery charging system if you are replacing an old one; the integrated battery management system will take care of the rest. Additionally, lithium batteries charge more effectively than lead acid batteries, which means that recovery will happen much faster.

This model SolarKing lithium battery use’s Active cell balancing technology to balance the internal battery cells not only whilst charging but also whilst discharging. This assist’s in getting the battery as close to 100% charge levels as possible.

This 150AH LiFePo4 model is in a metal case.

SPECIFICATION:

Dimensions 330x177x223mm Not Inc Terminal Bolt
Chemical: Lithium Iron LiFePo4
Cell Type: Prismatic
Product Weight: 17kgs
Operating Temperature Range: -0°C ~ +65°C
Voltage 12.8VDC
Amperage 150AH
Max Continuous Current 100A
Max 3 Second Pulse 250A
Min Charge Current <1A
Nominal Charge Current 30A
Max Charge Current 60A
Bulk Charge Voltage 14.6V
Float Charge Voltage 13.6V
Recommended Charge Rate: 30A
Cell Balancing: 5AH charge & discharge
Cycles @ 100% DOD 2000 Cycles
Cycles@ 80% DOD 3000 Cycles
Cycles@ 50% DOD 3500 Cycles
Cycles@ 30% DOD 8000 Cycles
Low Voltage cut out: 10.0VDC
Maximum charge voltage: 15.2V
Maximum In-series voltage: 30.4V
BMS Reconnect: Automatic
Terminal T8 (MM)
Certifications: CE, EMC, RCM, UN 38.3

150AH Lithium Iron

100A BMS
Metal case
2000+Cycles
Built in advanced BMS with Active cell balancing
Lightweight
Can be connected in series or parallel
Equivalent to 3 or 4 100AH deep cycle lead acid batteries
CE, EMC, RCM, UN 38.3
Note: This battery can’t be used to start motor vehicles
