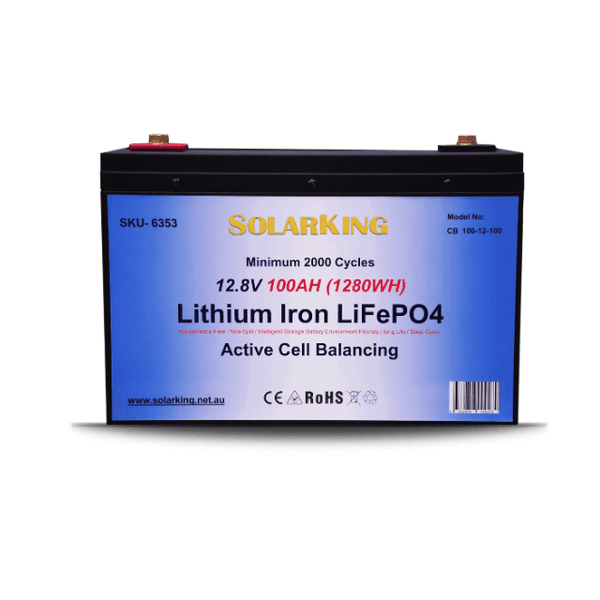

Solarking 12.8V 100AH Solarking Lithium Iron Battery Metal Case CB-100-12-100

SolarKing lithium batteries are the future of battery storage. Lithium batteries are much lighter than traditional lead acid batteries and deliver unrivalled cycle life, more than 4 times more cycles when compared to lead acid batteries.

Perfect for use in caravans, marine, camping and home storage applications. The batteries are fully sealed and an in built battery management system for safety protection.

If you are replacing an existing deep cycle lead acid battery you can continue to use your same battery charging system as the built-in battery management system with do the rest for you. You will also notice that lithium batteries charge more efficiently than lead acid batteries so the recovery will be much quicker.

This model SolarKing lithium battery use’s Active cell balancing technology to balance the internal battery cells not only whilst charging but also whilst discharging. This assist’s in getting the battery as close to 100% charge levels as possible.

This 100AH LiFePo4 model is in a metal case.

SPECIFICATION:

Dimensions 330x177x223mm Not Inc Terminal Bolt
Chemical: Lithium Iron LiFePo4
Cell Type: Prismatic
Product Weight: 18kgs
Operating Temperature Range: -0°C ~ +65°C
Voltage 12.8VDC
Amperage 100AH
Max Continuous Current 100A
Max 3 Second Pulse 250A
Min Charge Current <1A
Nominal Charge Current 30A
Max Charge Current 60A
Bulk Charge Voltage 14.6V
Float Charge Voltage 13.6V
Recommended Charge Rate: 30A
Cell Balancing: 5AH charge & discharge
Cycles @ 100% DOD 2000 Cycles
Cycles@ 80% DOD 3000 Cycles
Cycles@ 50% DOD 3500 Cycles
Cycles@ 30% DOD 8000 Cycles
Low Voltage cut out: 10.0VDC
Maximum charge voltage: 15.2V
Maximum In-series voltage: 30.4V
BMS Reconnect: Automatic
Terminal T8 (MM)
Certifications: CE, EMC, RCM, UN 38.

FEATURES:

100AH Lithium Iron

100A BMS
Metal case
2000+Cycles
Built in advanced BMS with Active cell balancing
Lightweight
Can be connected in series or parallel
Equivalent to 3 or 4 100AH deep cycle lead acid batteries
CE, EMC, RCM, UN 38.3
Note: This battery can’t be used to start motor vehicles

Solarking 12.8V 100AH Lithium Iron Battery Metal Case CB-100-12-100
