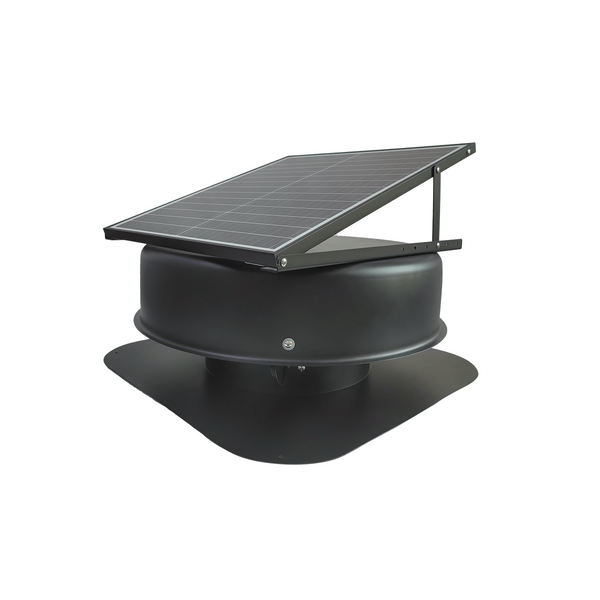

Solar Roof Ventilation Fan 320MM V3 Wireless

Now operate the fan from a distance with a new wireless remote control type. In addition to forcing the device on when the temperature drops below twenty-five degrees, you can set timers, control the fan's speed, and turn it on and off.

The summers in Australia are getting hotter, and our houses are too. Using solar roof ventilation, such as the SolarKing solar fan, is a terrific method to keep your house or place of business cooler in the summer. Australia's summertime roof temperatures frequently reach between 50 and 70°C; installing a SolarKing roof fan is the greatest method to counteract these extreme temperatures.

Many houses already have wind-powered "whirly birds" mounted on their roofs. Whirly birds only move about 100 CBM per hour for each unit, and they only benefit from heavy winds. There is no comparison between this and the SolarKing, which moves 2100 CBM every hour.

Whirly birds work regardless of temperature, so the SolarKing solar exhaust fan uses the sun and only kicks in when your roof space hits 25°C. This prevents warm air from being removed during the winter, when it's essential to keep your property warm. The SolarKing will cease to operate when the sun sets in the evening, but in the meantime, the fan has been sucking air from the roof, causing the temperature to drop naturally.

Ever notice how a two-story house's lower floor is usually consistently colder than its higher level? This is because the extremely hot air from the lower level is blocked by the upper layer. Similar to this, the SolarKing solar roof ventilation fan replaces the heated air within your roof with cooler outdoor air. This significantly reduces the intense heat that seeps into your living area from your roof.

To bring in cooler air through your open windows and doors, you can also install retractable vents in your home's ceiling that you can open during a cool spell. Generally, to extract the most hot air from your home, you would place these vents close to the center. The SolarKing solar fan then extracts this air along with the heated air from your roof.

Thus, if you want to significantly lower your summertime energy expenses and improve your comfort levels while utilizing air conditioners, harness the sun's free energy to do the heavy lifting and use your air conditioner far less.

All of the modifications from the V2.6 model are included in the most recent V3 model, which also features a DC power connection for connecting an optional 15V/240V power pack to enable the fan to run after dusk. When the solar level rises once more, the device will automatically switch to the optional power pack before returning to solar operation.

Even in this case, the device will shut off on its own when the outside temperature falls below 25 degrees. The V3 also includes the upgrades from the V2.6; instead of rapidly increasing and decreasing speed in response to passing clouds, the engine now runs on solar power at a steady speed. In full sun, the motor continues to run at maximum speed; however, it will not abruptly slow down or accelerate when clouds move overhead. Similar to the V2.6, the V3 operates extremely quietly and has the lowest noise output.

Advantages:

Keep Your Home Comfortable

The hot, dry air on the roof is removed by the SolarKing Exhaust Fan during Australia's scorching summers. 20 times more air than a Whirly Bird propelled by wind, and it can lower roof temperatures by up to 30 degrees.

Unlike Whirly Birds, which keep running throughout the colder months, the thermostatic control of the SolarKing Exhaust Fan stops heat loss and retains much-needed warmth.

Save Your Energy

As the SolarKing Exhaust Fan runs entirely on free solar energy, there are never any operating expenses.

Your energy expenses will go down and your dependency on air conditioning will decrease if you lower the temperature of your roof.

Easy Installation and Superior Performance

You have the option to install the SolarKing Exhaust Fan yourself or hire one of our certified experts to do it for you. All that is needed is a 320mm opening in the roof.

In addition to ensuring a long motor life, the brushless DC motor operates quietly. Because it is brushless, it performs better than other motors because it is also significantly more efficient.

Features

Increase comfort levels in homes and work places.
Reduce air conditioning costs.
20 times more air is extracted than with a "Whirly Bird"
wireless RF 20-meter range remote control with on/off, speed, and timer settings.
The device can extract air more efficiently than other versions because to its free circulation design, which includes an air deflection cone.
lowers the temperature on roofs by up to 30°C
Sun Now powered, use a DC power cord to attach to the optional 15V/240V power pack so that it can continue to operate after the sun sets.
No heat loss in the winter thanks to thermostat control
Updates from the V2.6 design are included in the V3 design.
The quietest brushless DC motor available has a steady speed control system for long-term, quiet operation.
resistant to corrosion and appropriate for coastal areas
Simple installation that doesn't need an electrician
lessens the amount of condensation that forms in your attic enhances the effectiveness of ducted air conditioning systems by lessening the amount of heat that enters the ductwork.
Simple installation is further aided by lightweight design.
Owned and run in Australia, SolarKing is suitable for tile, Colorbond, and flat roofs.

Specifications:

Model:320MM SRVF V3 Wireless

Capacity: 2100CBM Per Hour

Motor:35 Watts, 6-19VDC, 1600RPM Max, Brushless motor with double shielded ball bearings

Solar Panel Type: Monocrystalline PV, Heavy Duty Frame, 3mm Tempered Glass

Solar Panel Output: 42 Watts, 15VDC

Fan: 300mm Balanced 5 Blade Metal with Low Resistance

Noise: <45dBA

Automatic Shut Off: <25°C +/- 5%

Product Dimensions: 565x565x260mm

Flashing Dimensions: 565x565x1mm

Product Weight: 8.0kgs

Construction: Aluminium Top Cover, Steel Body, Steel Brackets and Stainless Steel Fasteners

Colour: Black Powder Coated

Packing Dimensions: 580x570x282mm

Packing Weight: 9.6kgs

Warranty: 2 Year Warranty (10 Years on Solar Panel)

Package Includes

1x SolarKing 320mm V3 Wireless Solar Roof Ventilation Fan

1x Roof Flashing

1x Instructions

2x Rafter/Batten Metal Straps

1x Wireless Remote
