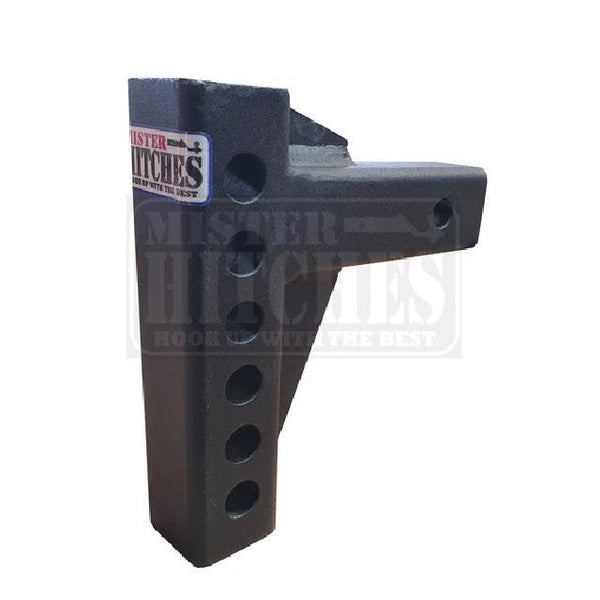

SHANK, SHORT LENGTH SUIT MISTER HITCHES WEIGHT DISTRIBUTION SYSTEM MHWDS07

THIS SHANK HAS A SHORTER SHANK LENGTH THAN THE STANDARD SHANK

SUITABLE FOR MISTER HITCHES WEIGHT DISTRIBUTION SYSTEMS & MULTI-HITCH MIX 'N' MATCH SYSTEM

THIS SHANK SUITS THE O.E.M. SHALLOW TOW BAR RECEIVERS OF MM PAJERO SPORT & FORD RANGER (PRE NEXT-GEN)

1. CENTRE OF PIN HOLE TO END OF SHANK = 40MM

2. CENTRE OF PIN HOLE TO GUSSET = 55MM

3. OVERALL LENGTH = 197MM

4. BOLT HOLE SPACINGS = 32MM

DROP (TOP OF SHANK TO TOP OF WDH BALL PLATFORM) = 63.5MM

RISE (TOP OF SHANK TO TOP OF WDH BALL PLATFORM) = 165MM

SHANK OVERALL HEIGHT = 225MM

SHANK IS SOLID STEEL 50.8MM SQUARE SUITS HAYMAN REESE STYLE TOWBAR RECEIVERS

4.5T RATED - SHANK ONLY
