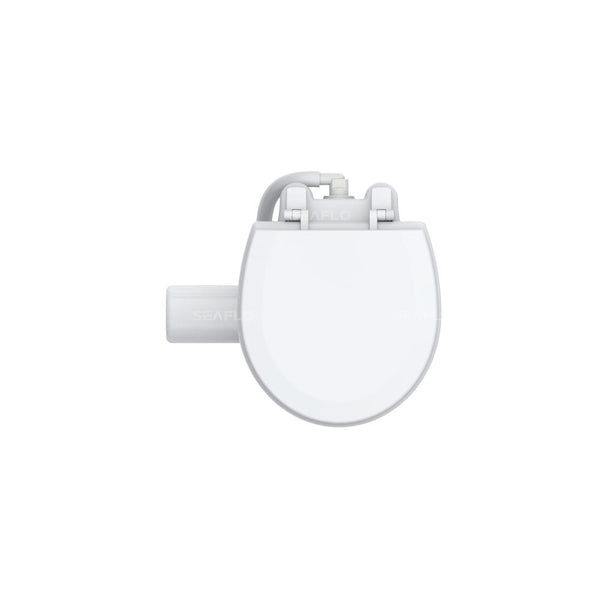

SEAFLO REGULAR ELECTRIC MARINE TOILET SFMTE1-01-R (12V)

A dual-function pump eliminates the need for hand pumps and dry-bowl valves. With the push of a button, the self-priming flush pump rinses the bowl as the Macerator and high-capacity scavenger pump grind up waste and pump it out. Includes a heavy-duty push button and 1" to 1- 1/2" discharge hose adapter. Easy-to-clean china bowl.

FEATURES

- Both pump & bowl are interchangeable with JABSCO.

- All spare parts can be ordered Individually.

- Convenient push-button flush.

- Easy-to-clean china bowl.

- Includes heavy-duty push button and 1"-1/2" discharge hose adapter.

- Flexible Impeller Flush Pump.

- Permanent Magnet Type Motor, Fully Enclosed, with Stainless Steel Shaft.

- Built-in Back Flow Preventer.

- All Corrosion Resistant Material for Marine Use.

STANDARD PUMP CONFIGURATION:

Model	SFMTE1-01-R
Type	Electric
Control Type	Switch Panel
Max Draw	20A @12V
Size	Regular
Diameter	3/4" Inlet
Material	Ceramic bowl, wood seat with baked enamel finish
*Dimension(LWH)*	490 x 445 x 430 mm (19.29''17.52''16.93'' )

DETAILED COMPOSITION:

Key	Description	Material
1	Cover assembly	MDF
2	Ceramic seat	ceramics
3	Plastic screw assembly	stainless steel
4	Screw cap	stainless steel
5	Tooth screw	stainless steel
6	Seal	NBR
7	Base	ABS
8	Bolt assembly	stainless steel
9	Tapping screw	stainless steel
10	Sewage rubber parts	NBR
11	Discharge port	PP
12	Macerator housing	PPS+glass fiber
13	Water pipe	PVC
14	Motor seal	NBR
15	Motor assembly
16	Motor cover	PP
17	Inlet elbow	PP+glass fiber
18	Inlet seal	NBR

SHIPPING INFORMATION

Unit Pump Weight	2.1kg
Selling Unit Size (L x W x H)	19.29''x 17.52''x 16.93'' (490 x 445 x 430 mm )
Selling Unit Weight	11 KG
Master Carton Size (L x W x H)	19.29''x 17.52''x 16.93'' (490 x 445 x 430 mm )
Master Carton Qty	1 PCS
Master Carton Weight	14.5 KG

WARNING

Flood hazard. If toilet is installed below the waterline or may be below the waterline at any angle of heel or trim, it must be installed with properly positioned vented loops. Failure to do so can result in flooding which can cause loss of property and life.

SEAFLO ELECTRIC MARINE TOILET SFMTE1-01-R (12V)
