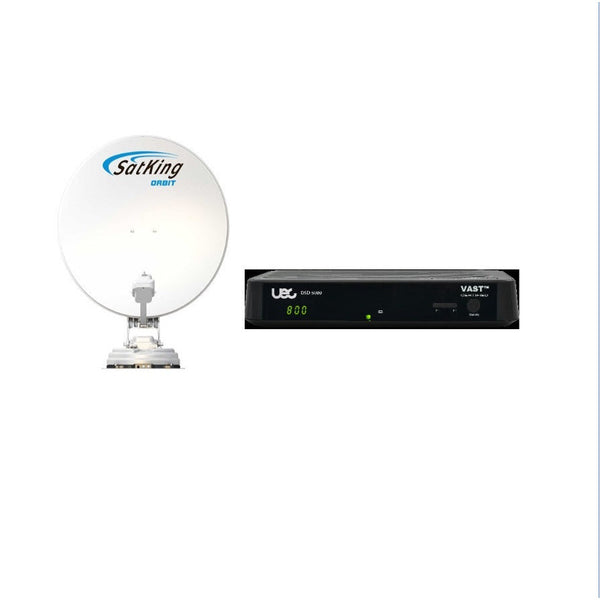

Satking Orbit Automatic Satellite Dish Kit + Altech UEC DSD5000 Vast TV Receiver

SatKing Orbit budget Fully Automatic Motorised Satellite Dish & Altech UEC Vast receiver package

The SatKing Orbit is the latest fully automatic Satellite TV dish to hit the Australian market. No need to manually dishes on the ground to watch TV anymore. TheSatKing Orbit has a 85CM high gain dish to provide coverage for VAST & Foxtel Australia wide. Just press OK, simple. Combine this system with a VAST or Foxtel Satellite receiver and you will be watching TV anywhere in Australia within 80 seconds. The Orbit Automatic Satellite Dish uses GPS so the unit already knows the current location for setting elevation and skew making alignment very fast. Just simply power on the unit and press OK and the dish will be locked in under 80 seconds.

The Orbit has a dual output LNB as standard and is suitable for VAST, Foxtel and Foxtel IQ. The unit is already high definition MPEG4 so as TV networks change to MPEG4 HD the Orbit will be unaffected. Many automatic dishes currently on the Australian market are MPEG2 and in the future these units will stop working.

The control box for Orbit is a basic controller with coloured led lights to indicate when searching and when locked. The main board for the Orbit is also built in the control box compared to the ProMax that has the main board in the antenna. The control cable for the Orbit is a multi core cable similar to other round auto dishes.

Even with the low cost the unit is still made for harsh Australian conditions and the unit is fully backed by a 2 year Australian warranty. Technical assistance is provided via a 1300 helpline.

Trailer Camper Australia is the largest Satking Authorised Dealer in NSW / ACT and offer full installation of the Satking Pro Max / Vast Satellite Dish Systems.

Features:

• Fully Automatic, Self Aligning, just turn on and press “OK”
• Receives VAST and Foxtel satellite TV (Satking DVBS2-980CA Vast Satellite Receiver INCLUDED)
• Australia wide coverage
• Dual Output LNB as standard to suit twin tuner STB’s
• Built in 24 channel GPS system to find satellites fast
• Suits caravan and Motorhome use
• Automatic LNB skew
• Powerful DC motors with metal gears
• Detailed instructions with roof mount included
• 2 Year warranty with 1300 helpline all handled by SatKing
• Made for harsh Australian conditions
• Made in Korea

Specifications:

Dish Dimensions

86.0 w x 91.0L cm
Physical Dimensions

110.6(L) x 86.0(W) x 18.4(H) cm / 15.1 kg
Product Weight

13.8kgs
Gift Box Weight

15.1kgs
Operating Temperature Range

-20°C ~ +60°C

LNB

Polarization

Horizontal/vertical
Dual Output Wideband

Dual Output
LNB Input Frequency

11.75-12.75GHz
LNB Output Frequency

1000 - 2050 MHz

Antenna Adjustment Range

Elevation

0°-145°
Azimuth

390°
Skew

-60° ~+60°

Satellite Searching Time

Searching Time

80 Seconds(Average)

Power

Input Voltage

DC 12 voltage range 10.5-16V
Consumption

60 Watts in Search Mode - 4W Standby Mode

Satking Orbit Australian Coverage Map

The SatKing Orbit provides Australia wide coverage of VAST and Foxtel Satellite TV. SatKing has provided a map to show the coverage area.

How does satellite TV work:

Satellite TV comes from satellites than are in a geostationary orbit (they don't move and are locked to the earths gravity) so they are always in the same position. Satellite TV providers specially design the beam of the satellite to cover where the population lives or travels. Satellite TV signal is not effected by hills/terrain or distance from terrestrial transmitters like normal terrestrial TV (digital TV) as the signal comes from a satellite in the sky.

Satking PromSatellite signals can be effected by rain, heavy cloud, overhanging trees or by a building blocking the northern sky (the building would need to be very close to the system to block signal). When a satellite signal drops out or can’t be received during a storm or heavy cloud normally you just need to wait until this weather event passes and then normal service should resume. If you are in a lower signal area a lesser rain or cloud event could block the signal, again just wait for the weather to improve for normal service to resume.

Package Includes:

1 x Satking Orbit Automatic Satellite Dish
1 x Vehicle roof mounting kit
1 x Controller
1 x DC Power cable
1 x Instruction booklet
1 x Colour gift box
1x Altech UEC DSD5000 Satellite Decoder

DSD 5000 Satellite Receiver

The UEC DSD4921RV was the most trusted VAST™ Twin Tuner Satellite Receiver in Australia. Meet the new DSD5000 by UEC, with the same compact chassis and a complete hardware rebuild inside, ready for the future and here now. Backed by UEC and our distribution network you can be assured of best-in-class support, always. Now with new additional features you’ll love, the best did get better. We integrated a 7 segment display for those who navigate the channels by number. The DSD5000 is just as happy in the home or on the road using a 12V power adaptor or a direct to 12V DC socket in your caravan or mobile home.

Features

Smallest VAST™ Receiver on the Market
PVR Ready
Receives TV and Radio services
Low power consumption
8 day extended EPG with search feature
Closed captions and Audio descriptor support
Remote control extender port
Clock in Standby Mode
Parental control
12v DC / 240v AC support
Single Input Dual Tuner
Dual DVB-S2 tuners
HEVC, MPEG-2/4 compliant
Ethernet 10/100 Mbps network port
Embedded IRDETO Secure Silicon
128 MB NAND & 512MB DDR3 RAM
Single satellite F-connector input with 2x DVB-S / S2 tuners,
7 – segment display with clock in standby

Hardware

VAST™ Certified
240vAC/12vDC 3amp Power Pack
Simultaneous HDMI and Composite Video Output
Irdeto Secure Silicon and VAST™ Smart Card included
USB (2 Amp)

What's in the box

Set Top Box
Remote Control Unit (RCU)
HDMI® Cable
Smartcard (inside STB)
Power Supply Unit 100 - 240VAC to 12VDC 2A

Whats Vast TV? Free to air digital television and radio channels via Satellite for those living in remote areas or who are unable to receive digital TV through their normal antenna because of issues relating to local interference, terrain or distance from the transmitter in their area. The VAST decoder can be registered as a permanent or traveller registration. A permanent registration is for households with a fixed installation of the decoder. A traveller registration covers people who as part of their travelling are in areas of Australia not covered by normal terrestrial television. Access to available channels is based on which state your box is registered to.

The unit can be used for either VAST traveller customers (12 Volt) or VAST at home customers (240 Volt) via the included power pack. For self installation SatKing has developed an internal signal finder with an intensity beeper to assist with installations the higher the signal the faster the beeping and an electronic map built in to give you your coordinates for easier dish positioning. The unit also has a detailed electronic help guide and handy features like a USB speed test to test your USB device. For the VAST traveller caravan market the unit also has an optional IR target so you can place the VAST decoder in a cupboard and hide the unit out of sight also handy two place the unit behind large screen TV’s in home when you don’t want to look at the STB. Commercial installations and customers with older TV’s will find the built in RF modulator of great assistance, you can simply use the SatKing decoder on any TV new or old without any extra expense.

Review sent to us 17/4/2017- 'Afternoon....Gordon Collett here, as I said, I would let you know how the Satking Pro went travelling from WA to Adelaide, now in Moe VIC. The unit was flawless ,worked very well on Vast and Foxtel. We travelled about 250kms and set up in each location, it was great! Thank you for your help and service during the purchase. Kind Regards Gordon Collett'

Satking Orbit Fully Automatic Motorised Satellite Dish + Altech UEC DSD5000 Vast TV Receiver
