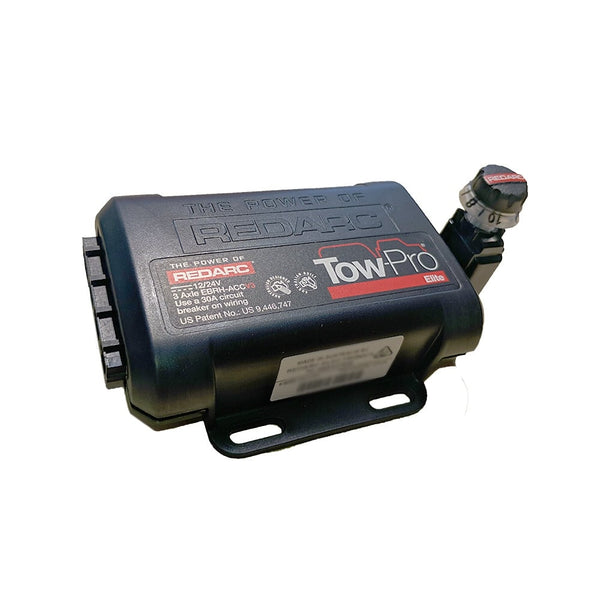

The REDARC Tow-Pro Elite Electric Trailer Brake Controller offers two types of braking, proportional and user-controlled mode.

The New Tow-Pro Elite V3 from REDARC is an Electric Trailer Brake Controller designed to suit most common trailer braking applications whilst requiring minimal dash space and being simple to install and operate. Offering selectable Automatic or User Controlled trailer braking modes allowing the user to choose the braking style depending on the road or terrain conditions, vehicle type, or driver preference.

Redarc Tow Pro Elite -The Most Popular Electric Brake Controller On The Australian Market.

The Redarc Tow-Pro Elite V3 is an electric brake controller designed to suit most common trailer braking applications whilst requiring minimal dash space and is simple to install and operate.

The Tow-Pro Elite EBRH-ACCV3 trailer brake controller offers selectable Automatic or User Controlled trailer braking modes allowing the user to choose the braking style depending on the road or terrain conditions, vehicle type, or driver preference.

The Tow-Pro Elite V3 electric trailer brake controller features Active Calibration which constantly monitors the direction of travel, the unit will even calibrate with no trailer attached whilst maintaining the ability to mount in any orientation.

The unit is able to operate both electric and electric/hydraulic trailer brakes and will operate from either 12V or 24V vehicle systems without the need for manual selection or extra components or wiring. The unit is also Australian Design Rules (ADR) compliant when installed as directed.

Specifications:

Input (Operating) Voltage 9 - 32VDC
Input Fuse Rating 30A (Circuit Breaker)
Warranty 2 Years
Standby Current Draw <10mA
Output Voltage 12VDC
Output Current Rating (Cont.) 25A
Length (mm) 85
Width (mm) 100
Height (mm) 30
Weight(kg) 0.2

Redarc Tow-Pro Elite V3 Electric Trailer Brake Controller EBRH-ACCV3 12v
