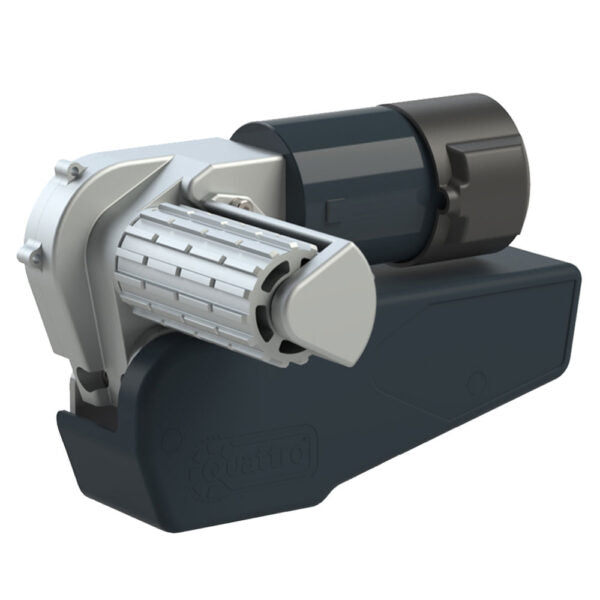

QUATTRO PLATINUM CARAVAN MOVER EGO500

Quattro Platinum – The caravan mover of choice for big Aussie vans

The caravan mover of choice for big Aussie vans up to 3000kgs on twin axles, the Quattro Platinum 500 comes with large 180mm wide rollers and an adjustable wind-on engager. Unlike powered jockey wheels, the Platinum drives the wheels of the van directly, where 90% of the caravan’s weight is located, rather than on the a-frame that only carries 10% of the van’s weight.

Strong, reliable, and robust – you’ll be able to manoeuvre without the need for any manual labour. The Quattro Platinum incorporates Quattro technology – the intelligent modular system, featuring soft-start mechanics that can be used on single, twin and 4WD caravans.

Excellent value lightweight auto-engaging caravan mover with protective and smart electronics. The powerful and efficient motor makes for stress free caravan manoeuvring.

FEATURES:

Suitable for single and twin axle caravans
Auto-engage effortlessly moves caravans up to 3000kg
Easy manoeuvring with Smart Handset
Market leading 2-year warranty

SAFETY FEATURES:

Isolation switch fitted to prevent accidental use of the remote
Unique double press ‘on’ button on the handset to prevent accidental operation
Control unit and handset will shut down automatically after 60 seconds if the handset is not used in that time
Control unit will shut down if the mover is working constantly in one direction for 3 minutes
Built in motor overload protection (current and temperature) – no requirement for a fuse
Automatically brakes immediately as soon as the handset button is released

SPECIFICATIONS:

Operational Voltage	12V DC
Avg Current Consumption	25 Amps
Max Current Consumption	120 Amps
Power Output	585kg
Max Speed	12cm / sec
Weight	31kg (includes fit kit)
Minimum Width (caravan/trailer)	1800mm
Maximum Width (caravan/trailer)	2500mm
Safe Working Load (SWL) (2250kg - 2 motors)	up to 1.5 tonnes on a 25% incline
Safe Working Load (SWL) (3000kg - 4 motors)	up to 2.5 tonnes on a 20% incline
