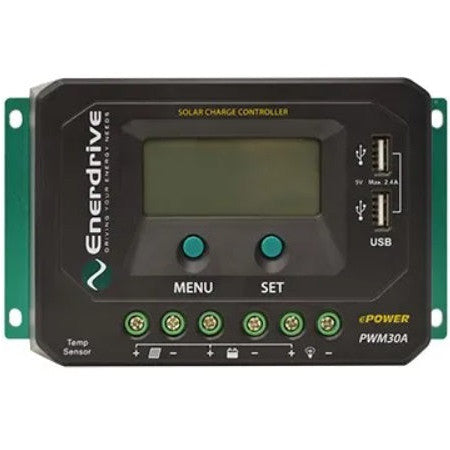

ENERDRIVE POWER PWM 30A Solar Charge Controller

Features

Informative backlight LCD display indicates solar charge input, charge/load output Volatage/Amps
Selectable battery type Sealed, Flooded & Gel
2 x USB Outputs 2.4A
Full output operation up to 55oC
Temperature compensation
High precision on voltage set point
Wall mountable

Enerdrive Part Number	EN43030
Battery Voltage Input	12/24 Vdc
Max. PV panel open circuit voltage	12V-20VOC - 24V-50VOC
Maximum charge current	30A
Maximum load current	30A
Operational Current (no load & no PV)	12V -18mA 24V -14.5mA
Battery Type	Sealed (Default) / Gel/ Flooded
Bulk/Absorption Charging Voltage	Sealed: 14.4V/ Gel:14.2V/ Flooded 14.6V
Equalize Charging Voltage	Sealed: 14.4V/ Gel:14.2V/ Flooded 14.8V
Float Charging Voltage	Sealed/ Gel/ Flooded: 13.8V
Low Voltage Disconnect	Sealed/ Gel/ Flooded:11.1V
Low Voltage Reconnect	Sealed/ Gel/ Flooded:12.6V
Temp Compensation Coefficient	-18mV/°C >25°C@12V / -36mV/°C >25°C@24V
Charge circuit voltage drop	0.29V
Discharge circuit voltage drop	0.16V
Battery Chargers Stages	2 Step: Bulk and Float
LCD temperature range	-20 ̊C+70 ̊C
Operating temperature	-25 ̊C+55 ̊C
Relative humidity	95% N.C.
Enclosure	IP30
Grounding	Common Positive
USB output	5VDC/2.4A (Total)
Dimensions (L x W x H)	181 x 101 x 60mm
Weight	0.55 Kg
Terminals	16mm2 - 6AWG
Warranty	3 Years
Note: Specifications subject to change without notice.
