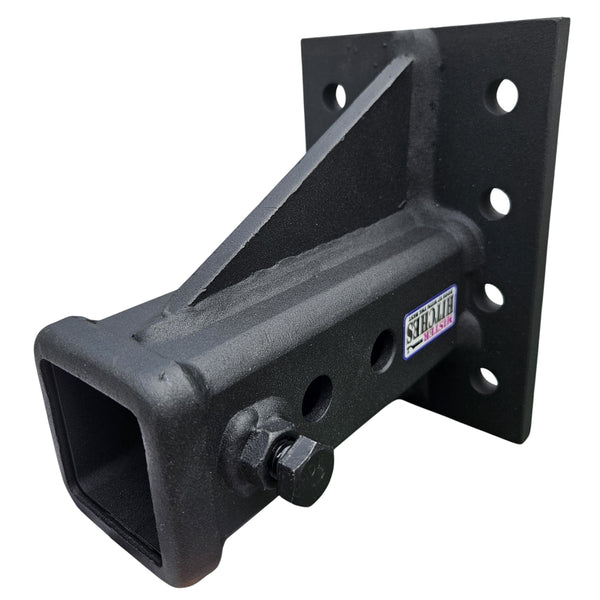

Mister Hitches Receiver Hitch Bolt-On Heavy Duty MHBRT845

The Mister Hitches Heavy Duty Bolt-On Receiver Hitch is designed for tough towing jobs. Bolt it directly to the pre-drilled rear-frame cross brace of most Land Cruiser and Land Rover models, or fit it to any Pintle mount configuration. Engineered for strength and durability, it features a 5.75mm thick shank, 12.7mm backing plate, and Seaguard Matte Black finish. Installation is simple with the included anti-rattle bolt, Grade 8 hardware, and hitch pin & clip.

Key Features:

Heavy-Duty Strength: Gross Trailer Weight (G.T.W.) of 4,500 kg
Premium Construction: Robotic-welded with a 12.7mm thick mounting plate
Versatile Mounting:
- 86mm x 44.5mm bolt pattern fits Pintle mounts
- Compatible with LandCruiser & Land Rover rear-frame 4-hole mounting points
- Reversible design with 2 pin holes & 8 mounting holes for maximum adjustment
Enhanced Durability: Dual-strengthening gussets and reinforced collar
Complete Installation Kit: Includes 4 x 1/2” Grade 8 bolts & nuts (torque to 136Nm / 100 ft-lbs), anti-rattle bolt, hitch pin & clip
Exclusive Finish: Seaguard Matte Black coating for corrosion resistance

What’s Included:

Bolt-On Receiver Hitch
Anti-Rattle Bolt
Hitch Pin & Clip
4 x 1/2” Grade 8 Bolts & Nuts
Installation Instructions

DO NOT OVERLOAD
