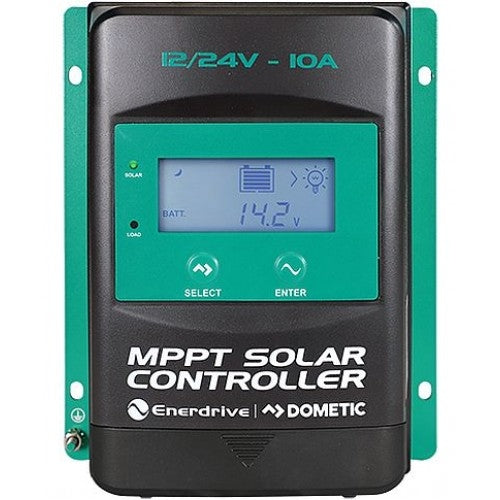

ENERDRIVE MPPT SOLAR CONTROLLER W/DISPLAY - 10AMP 12/24V EN43510-10AMP 12/24V

Product Features:

The Enerdrive MPPT Solar Controllers adopt the advanced MPPT control algorithm, it can minimize the maximum power point loss rate and loss time, quickly track the maximum power point (MPP) of the PV array and obtain the maximum energy from solar array under any conditions; and it can increase the ratio of energy utilization in the solar system by 20%-30% compared with PWM charging method.

The Enerdrive MPPT Solar Controllers has self-adaptive three-stage charging mode based on digital control circuit, which can effectively prolong the lifespan of batteries and significantly improve the system performance. It also has comprehensive electronic protection for overcharge, over discharge, PV & battery reverse polarity. This controller can be widely used for RV, Marine, remote off grid monitoring and many other applications.

IP33 Ingress protection and isolated RS485 design further improves the controller’s reliability and meet the different application requirements.

Enerdrive MPPT Solar Controller Features:

CE certification (LVD EN/IEC62109,EMC EN61000-6-1/3)
LCD display
Advanced MPPT technology & ultra-fast tracking speed guarantee’s tracking efficiency up to 99.5%
Maximum DC/DC transfer efficiency is as high as 98.6%.
Advanced MPPT control algorithm to minimize the MPP lost rate and lost time
Accurate recognition and tracking of multi-peaks maximum power point
Accurate recognition and tracking of multi-peaks maximum power point
Support lead-acid and lithium batteries
Real-time energy statistics function
Power reduction automatically over temperature value
Multiple load work modes
Comprehensive electronic protection
IP33 Ingress protection
Comms port included for future applications

SPECIFICATION

Maximum PV Array Power Allowed (Overdrive)	180W/12V 360W/24V	360W/12V 720W/24V	540W/12V 1080W/24V	720W/12V 1440W/24V
Efficiency (Maximum)	98.20%	98.30%	98.60%	98.60%
Self Consumption	≤30mA (12V) ≤16mA (24V)
Temperature Compensate Coeffcient ⁴	-3mV/°C/12V (Default)
Grounding	Common Negative
RS485 Interface	5VDC/200mA (RJ45)
LCD Backlight Timeout	Default: 60S, Range,: 0~999S (OS: the backlight is ON all the time)
ENVIRONMENTAL PARAMETERS
Environmental Temperature ⁵	-25°C ~ +50°C
Storage Temperature Range	-20°C ~ +70°C
Relative Humidity	≤95%, N.C.
IP Rating	IP33
MECHANICAL PARAMETERS
Dimensions (mm) LxWxH	175 x 143 x 48	217 x 158 x 56.5	230 x 165 x 63	255 x 185 x 67.8
Mounting Hole Dimensions (mm)	120 x 134	160 x 149	173 x 156	200 x 176
Mounting Hole Size	ɸ5mm
Maximum Cable Size (Connector Input/Output)	12AWG (4mm²)	6AWG (16mm²)	6AWG (16mm²)	6AWG (16mm²)
Recommended Cable Size (Connector Input/Output)	12AWG (4mm²)	10AWG (6mm²)	8AWG (10mm²)	6AWG (16mm²)

When lithium battery is used, the system voltage can’t be identified automatically.
At minimum operating environment temperature.
At 25°C environment temperature.
When lithium battery is used, the temperature compensate coefficient must be 0, and can’t be changed.
The controller can supply full load working in the environment temperature. When the internal temperature reaches 81°C, the reduced charging power mode is turned on.
