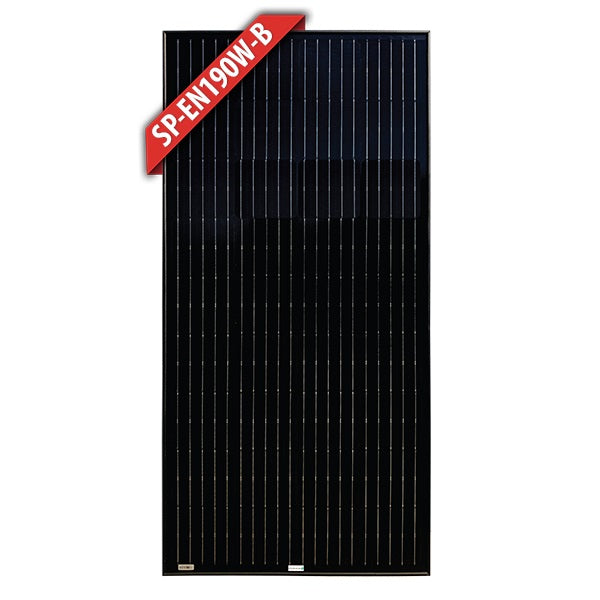

Enerdrive 190W Fixed 12V Mono Crystalline Solar Panel Black Frame SP-EN190W-B

Enerdrive solar panels are typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels).

Enerdrive has a range of Mono & Poly Crystalline solar panels from 10 to 200watts. Each module is typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels).

A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included.

Specifications:

Enerdrive Part Number	SP-EN190W-B
Max Power Pm(W)	190
Power Tolerance %	± 5%
Max Power Voltage Vm(V)	20.00
Max Power Current Im(A)	9.50
Open Circuit Voltage Voc(V)	24.80
Short Circuit Current Isc(A)	10.07
Max System Voltage (VDC)	1000
Dimensions (mm)	1500 x 680 x 35
Weight (kg)	11.5
Test Conditions	1000W/m² , AM1.5 , 25°C

Enerdrive 190W Fixed 12V Mono-Crystalline Solar Panel Black Frame
