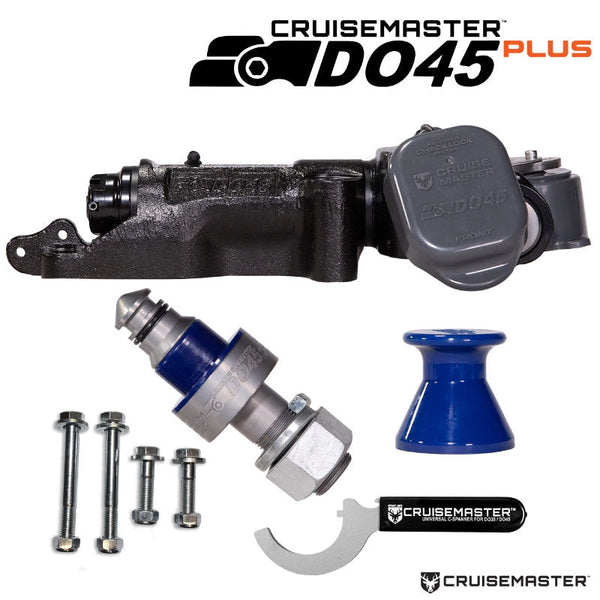

Cruisemaster DO45 PLUS 4.5T Off Road Coupling with Bolts No Handbrake

The DO45 is the big brother of the DO35. Caravans up to 4.5 tonnes can have the benefit of a heavy-duty off-road WDH compatible hitch. This coupling also incorporates a double automatic locking mechanism, massive articulation in all directions simultaneously and the patented self-aligning pin.

ADD HANDBRAKE FOR ADDITONAL $45 - CHECK PRODUCT OPTIONS

In addition the DO45 has some new features. These include a safety dust cover which ensures that when fitted the coupling is correctly locked and ready to go. As well as this a front cushion is fitted to reduce any damage to the tow vehicle should the coupling process be taken a bit ambitiously. The drop-on facility come into its own when trying to couple up on uneven and soft surfaces where trying to level up the tow vehicle and caravan or camper trailer can be extremely difficult.

Like all Cruisemaster™ products our couplings range is designed and tested to perform under Australian Conditions. Each year, Cruisemaster™ vigorously remote area test new coupling designs and features with highly sophisticated Motec Data logging technology such as temperature sensors, G-force sensors, height sensors & comprehensive GPS tracking software.

PLUS SERIES EXCLUSIVE FEATURES

Patented “Checklock” Gen.2 Dust Cap & Bumper for an easy, secure seal
Improved Bumper now includes reflective reversing strip for easy alignment
Rear support webbing allows for mounting upside down on the underside of the drawbar

FEATURES

D-Value & V-Value ADR Compliant
2 Stage ADR compliant locking mechanism
Low profile Bumper & Cap for impressive clearance
High articulation for improved handling off-road and on unmaintained roads
Available with or without handbrake
Suitable for use with Weight Distribution System’s (where applicable)
Forged Yoke and Rear Nut for added strength
One piece light weight Cast Housing
Improved towing safety
Combination of zn-ni and e-coat for superior corrosion protection
Greaseable Bushes for easy maintenance and noise free towing
No tow ball height restrictions
R.A.T Run Tested and Proven

ARTICULATION:	360 degrees axial, minimum 70 degrees other axes.
LOCKING:	Fully ADR 62/02 compliant including automatic secondary lock
BOLT PATTERN:	4 bolts at 185mm x 76mm (Front) x 54mm (Rear)
RATING:	4.5 Tonne
ACTION:	Drop-On
MAINTENANCE:	Fully Greasable

*Please note while the DO45Plus’s Zn-Ni with E-Coat provides superior corrosion protection it may fade with extended exposure to UV. This does not affect the operation of the DO45Plus. To best maintain the finish of the product, we recommend covering the DO45Plus coupling when not in use if stored outside and exposed to direct UV.

KOVIX Alarmed Trailer Lock KTR-18

Achieve maximum security for your caravan, boat or camping trailer with the KTR-18. Built from high grade 304 Stainless Steel, this lock has the added benefit of a 120db motion sensor alarm.

Features:

Built-in 120db Alarm System
Ultra Strong. Heavy duty, stainless steel construction
Long-life lithium battery
Weatherproof electronics
18mm stainless steel pin with anti-cutting sleeve
Removable ball to fit DO35/45 and other hitches
On and Off Alarm modes

Additional information:

Weight : 1.4 kg
Dimensions : 15.75 × 10.5 cm

DO45 Version 1 & DO45Plus accessories and fittings are not interchangable

Cruisemaster DO45 PLUS 4.5T Off Road Coupling with Bolts No Handbrake With Alarmed Trailer lock
