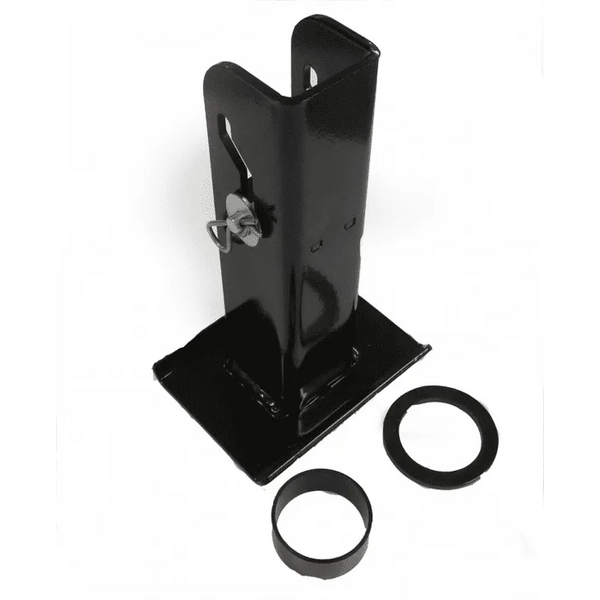

Black Jack Folding Foot for Master, Maxi and Original.

The Black Jack Folding Foot is designed easily connect to the shaft in just a few easy steps. Simply remove the existing silver extension foot by releasing the clip-pin. Position and align the Folding Foot in its place and insert the clip-pin in the holes provided. Makes swapping from one to the other a breeze and improves your hitch and unhitch experience.

Warning and Caution !!

Black Jack Folding Foot Installation.

The folding foot must be installed so that it is clear of any obstructions. The folding foot must be able to freely extend and retract to its full extension and full horizontal retraction.
If the foot encounters an obstruction, for example, a chassis rail or brake cables, before it is fully retracted to a horizontal position, then there is a risk of serious internal mechanical damage to the Black Jack. The damage is caused by the leverage pressure (up to 3,500kg) that the folding foot can add if it encounters an obstruction. This type of damage is NOT covered under warranty as it is a user installation error.
When installing the folding foot, make sure the Black Jack orientation allows for full clearance of the folding foot. This may mean rotating the orientation of the Black Jack.
If the folding foot cannot be installed so that it is clear of obstructions, then DO NOT USE IT. Install the silver adjustable foot instead.

Heavy-duty but also lightweight provides a great travel accessory and can be permanently connected when travelling. Please note: The new Black Jack Mini is not compatible with the Folding Foot.

Specifications:

BLACK JACK Trailer Jack Folding Foot Dimensions

Diameter Foot Plate: 15.2cm x 11.5cm
Height: 25cm
Weight: 2.2kg
Maximum Load: 1,000kg
