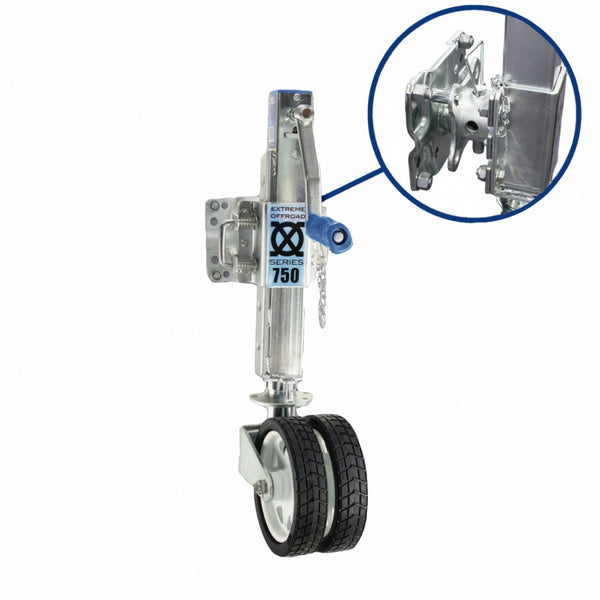

ARK XO750 Jockey Wheel Tube Mount

Ark’s XO Series Jockey Wheels are the toughest, most advanced Jockey Wheels in Australia today.

The new XO750T Tube Jockey Wheel utilises a revolutionary reinforced tube mount bracket that eliminates bend and increases strength in the Jockey Wheel. The XO750T shares all the same great features of the XO Jockey Wheels but unlike its predecessor, the XO750T is completely removable and can be stowed anywhere. Furthermore the XO750T bracket is compatible to most conventional tube mounts currently available in the market, so if your tube mount is already welded to your trailer draw bar then the XO750T can attach directly to your existing bracket.

Heavy duty body with 750kg rating

• Increases load carrying capacity and eliminates the likelihood of “bend” under weight

Heavy duty Tube Mount With Quick Release Pin

• Ability To quickly remove the jockey wheel from the drawbar
•Handy to remove from shorter drawbars and stow away on a diffrent part of the trailer
• Ability to be locked using PL80 lock for added security
• 4 bolt pivot point ensures no more bowing underweight
• Suitable for 75mm, 100mm, 130mm and 150mm drawbars
• Comes with mounting hardware – no more welding onto drawbars

4 x adjustable height positions

• 250mm height adjustability at each of the 4 positions, whilst maintaining a central swivel point for extra strength

Dual wheel with sealed bearings & Off road tread

• 2 x 8″ Premium wheels
• Increases off road grip and spreads the load

Variable yoke lock

• Allows you to lock the yoke in 1 of 5 positions when the jockey wheel is stowed, to allow for clearance of stone guards, toolboxes, jerry can holders etc

Easy-pivot trailing yoke design

• Wheel pivots easily, even under heavy load or on soft ground

Magnetic, removable, side-winding handle

• Easier raising & lowering of trailers/caravans – away from stone guards, toolboxes or jerry can holders
• Magnetic, removable handle ensures safe stowage and prevents damage in offroad situations

Rust resistant finish

• Salt spray tested for 600 hours
