Ark XO750 XL Off Road Jockey Wheel - ORJW750XL

XL Model XO750 now with greater height adjustment.

Off Road Camper Trailers & Caravans are increasingly using larger 17“ Alloy Wheels with 265/70R17 Off Road Tyres, which means your Jockey Wheel needs extra height adjustment as well. The NEW 750 XL comes with an increased main body length and 6 x adjustable height positions instead of 4 on the older model XO 750

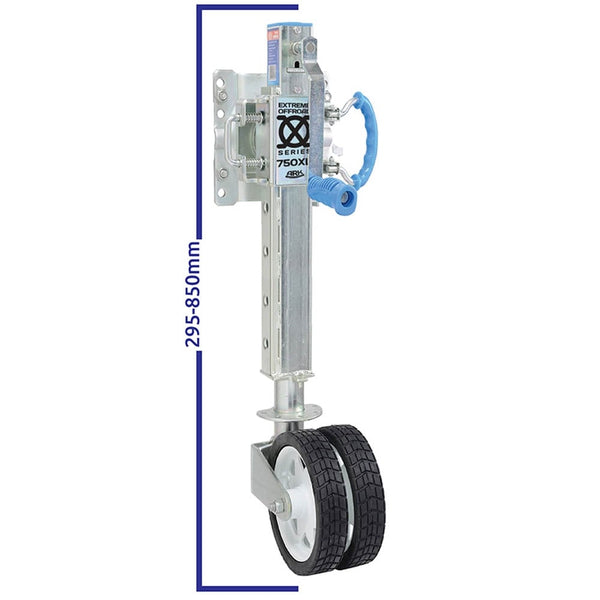

The XO750 XL now has 850mm overall maximum height. The Increased main body length provides the extra height while retaining a heavy-duty 750kg rating. That's an extra 140mm lifting height over the XO750 Model.

Designed for the toughest Trailer, Camper, Boat or Caravan applications

Highly maneuverable, the Ark XO 750 XL Jockey Wheel has an easy pivot trailing yoke design and 1- 5 different yoke locking positions. With a heavy-duty square shaft giving it a 750kg static load rating, heavy-duty swivel clamp with a four bolt pivot point suitable for drawbars up to 150mm (U-BOLTS INCLUDED), six adjustable height positions, 250mm extension at each setting, class leading dual wheels, 4x sealed bearings and offroad rubber tread.

XO750 XL Features

New Heavy duty extra long body with 750kg rating

Extra Height Adjustment
Minimum Height of 295mm
Maximum Height of 850mm

Heavy duty swivel clamp

4 bolt pivot point ensures no more bowing under weight
Suitable for 75mm, 100mm, 130mm and 150mm drawbars
Comes with mounting hardware – no more welding onto drawbars

6 x adjustable height positions

250mm height adjustability at each of the 6 positions, whilst maintaining a central swivel point for extra strength

Dual wheel with sealed bearings & Off road tread

2 x 8″ Premium wheels
Increases off road grip and spreads the load

Variable yoke lock

Allows you to lock the yoke in 1 of 5 positions when the jockey wheel is stowed, to allow for clearance of stone guards, toolboxes, jerry can holders etc
Easy-pivot trailing yoke design
Wheel pivots easily, even under heavy load or on soft ground

Magnetic, removable, side-winding handle

Easier raising & lowering of trailers/caravans – away from stone guards, toolboxes or jerry can holders
Magnetic, removable handle ensures safe stowage and prevents damage in off-road situations

Rust resistant finish

Salt spray tested for 600 hours

Trailer Camper Australia is the largest Ark Off-road Jockey wheel stockiest in the ACT & NSW and offer in-house fitment to caravans, camper trailers, horse floats and boat trailers on the spot.

For those looking for the best online prices from other states NSW, QLD, VIC, SA, NT, WA we ship out these items daily via Auspost Eparcel (includes full tracking and signature).

Ark XO 750 XL Off Road Jockey Wheel - Extra Height Adjustment
