Amptron 12V 200W Monocrystalline Portable Solar Blanket

New 2020 Model - Amptron's largest 200W Solar Blanket offers high performance features and build quality to meet you expectations.

The AMPTRON 200W Portable Solar Blanket is a Compact, Lightweight ( 6.15kg Panel / 7.5kg in Carry Bag ) Foldable Solar Panel that's designed to go anywhere your Camping, 4WD, 4x4 Off-Road, Marine and Caravaning Adventure takes you.

The Amptron 200W Portable Folding Solar Blanket is covered by a 2 Year Warranty including a 25-Year Solar Cell Efficiency Guarantee. Utilising High Quality Mono-Crystalline Cells - The Amptron Solar Blanket Range feature ETFE Protective Coating (the light transmission of ETFE is superior resulting in higher spectral performance, corrosion resistance, anti-reflective, scratch and UV resistance) delivering up to 21.8% Cell Efficiency or up to 11 Amps output in full sunlight. ETFE maintains its transparency for its whole life cycle, which in optimal conditions can reach over 20 years.

The versatile weather proof design provides a IP67 Rated Sealed Junction Box with Anderson Plug, 5m Anderson Extension Lead, Multiple mounting and connection options.

Suitable for Charging LIthium LiFePO4, Gel, AGM, Lead Acid and Calcium Batteries and comes with a 20A PWM Solar Charge Controller to regulate power from your Solar Blanket to the Battery.

Key Features

Compact Size and Light Weight.
Light & Splash Proof polyester fabric.
Long life with fabric-fabric stitching.
Waterproof fabric.
Each segment covered by fabric.
Anderson connectors for easy interchange connection.
20A PWM Charge Controller for safe & effective charging (Upgrage to 20A MPPT available)
High Efficiency Monocrystalline cells.
Comes with 5m Extension Cable, 0.6m long Cable with Anderson connectors and Alligator Clips
Foam padded heavy duty carry bag to carry module, cables and controller
Multiple Mounting Options.
- No-Slip on metal surface - Integrated magnetic back
- Easy to Hold Suspend loops.

Amptron 200w Specifications

Maximum power rating	200W
No. of arrays	25W x 8 Array
Current at max power	11.0 A
Voltage at max power	18.17 V
Short circuit current	11.68 A
Open circuit voltage	21.44
Tolerance on power output	+/-6.0%
Module efficiency	18.40%
Maximum system voltage	750V
Cell efficiency	21.80%
Number of cells	32 cells x 8 panels
Weight	6.15
Unfolded dimensions	1855 x 1000 x 10mm
Folded dimensions	500 x 400 x 50mm
Warranty	2 Years

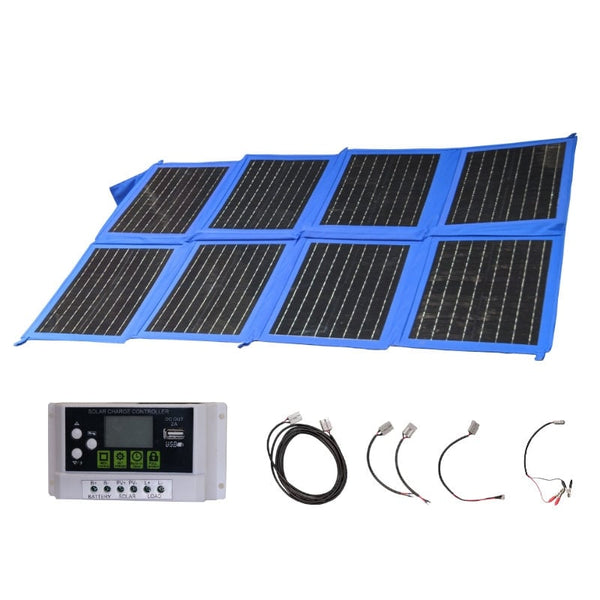

Amptron 200W Mono Crystalline Portable Solar Blanket Kit
