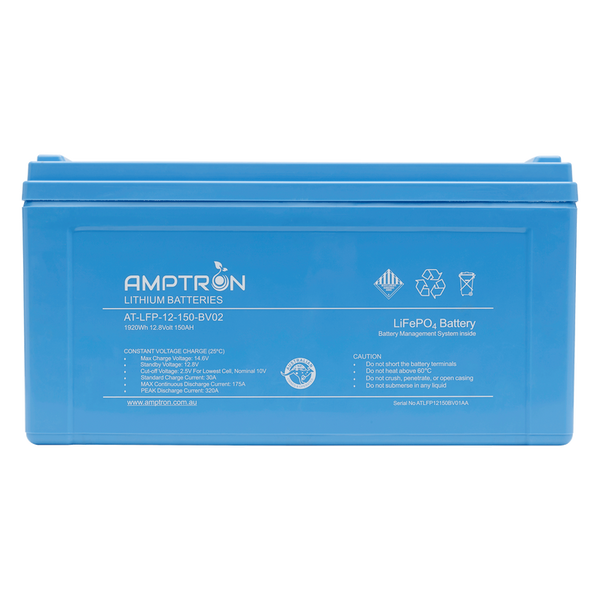

Amptron 12V 150Ah / 175A Continuous Discharge Lithium LiFePO4 Battery

4 Year Australian Manufacturer Warranty

AMPTRON 12V 150Ah / 175A continuous discharge Lithium LiFePO4 Batteries are an alternative replacement (AR) for any application currently using a deep cycle Gel, AGM or Flooded Lead Acid battery. The maximum continuous discharge current is 175A and peak discharge current 320A for 10 seconds.

Our Lithium batteries use a high quality robust integrated Battery Protection System (BPS) and is designed to manage and control all the battery protection requirements. The BPS maximizes the performance of the battery by automatically balancing the cells and protecting them from being over charged or over discharged. Our integrated BPS design is what allows our batteries to be used as an AR "Alternative Replacement" for any application requiring durable, high quality, dependable and lightweight Lithium Batteries.

Features:

High energy density, more usable energy in less space
Light, compact & portable
Can safely use 100% of rated capacity vs 50% for Lead Acid
Built to service higher loads without loss of capacity (Peukert’s effect)
The flat discharge curve means longer run time & more efficient use of capacit
Energy efficient

Heavy Duty - Built in Battery Protection System

AMPTRON lithium batteries use a high quality robust built-in Battery Protection System (BPS) designed to prevent damage to the cells from almost any external accidental occurrence that would normally cause damage. The internal BPS will automatically disconnect to prevent damage to the cells if the battery drains below 10 volts. It will automatically reconnect when the charger is turned on. This protects the battery from over-discharging and damaging the cells. This technology also protects the battery from short circuit and reverse polarity.

Internal Features:

Low Voltage Protection Switch - Automatically disconnects at 10V
Over Voltage Protection Switch - Automatically disconnects at 14.6V
Short Circuit Protection Switch - Automatically disconnects
Reverse Polarity Protection Switch - Automatically disconnects
Internal cell balancing - Automatically balances cells
Charge Balancing - Independent balancing for multiple batteries connected in parallel or in series.
This Battery Protection System is designed to last throughout the life of the battery and provide reliable power for thousands of cycles.

CELL BALANCING
The BMS balances the cells by sending more current through the length way circuit boards and into cells with a lower voltage. The BMS will also discharge cells that exceed 3.65V during charging.

THERMAL FUSE
Internal Cell Safety Fuse
Our latest cell technology is manufactured with a internal thermal safety fuse between the anode and cathode that will break and disconnect in the unlikely event the cell would begin to overheat.

SAFETY VENT
High pressure safety vent
Each cell has a high pressure safety vent that will flip open to release energy and prevent explosion.

ELECTROLYTE
Flame Retardant Electrolyte
Our cells are manufactured with our patented flame retardant additive in our electrolyte.

EXPLOSION PROOF
Explosion proof Nickel plated steel
Every AMPTRON® cell is manufactured in our explosion proof Nickel plated steel Prismatic case.

Specifications

Chemistry: Lithium Iron Phosphate (LiFePO4)
Battery dimensions: 405 x 175 x 240mm
Terminals: T8 (8mm)
Weight: 19kg
Cell type: 3.2V 100Ah
Battery module: 8 pcs 3.2V 175Ah cells, 2 parallel & 4 serial
Casing material for single cell: Nickel plated steel
Standard capacity (0.2C5A): 150 Ah / 1920Wh
Cycle life: > 2000 cycles at 100% Depth of Discharge (DoD), up to 5000 cycles at 80% DoD
Rated voltage: 12.8V (Working voltage per cell: 3.2V)
Charge voltage: 14.4 - 14.6V (Max. per cell: 3.65V)
Cut-off voltage: 10V (Discharge voltage per cell: 2.50V)
Depth of Discharge (DoD): 100%
Standard charge current: 30A (0.2C)
Charging time: Approximately 5 hours (from low voltage cutoff)
Optimum charge current range: 30A (0.2C to 75A (0.5C)
Rapid charging: Max. charge current 150A (1C3A) (Max Temperature increase within 15°C)
Max continuous discharge current: 175A (1C, cell min voltage> 2.0v)
Peak discharge current: 320A (2C for 5 seconds)
Discharge performance in normal temperature: 20A (0.2C3A) ≥ 100%; 1C3A ≥90 %
Operating temperatures: Standard 0°C~45°C, Discharge -20°C~65°C, Storage -20°C~45°C
Impedance (Max, at 1000Hz.): ≤ 45mΩ
Storage performance: Capacity can be kept ≥ 80% in storage for 12months

Amptron 150 AH 12 V Lithium Iron LiFePO4 Battery 175 A BMS Prismatic Cell Balancing
