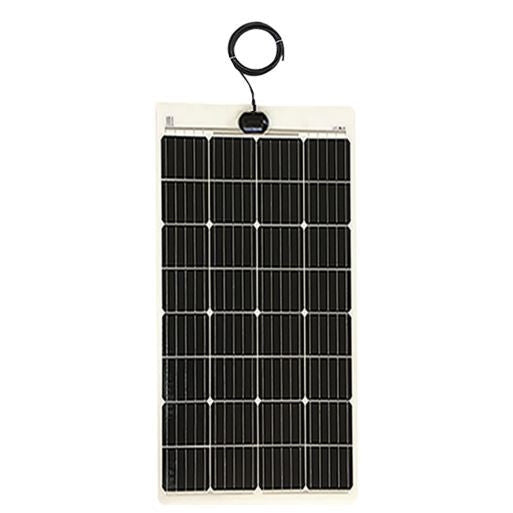

170W 12V Flexible Mono-crystalline Solar panel

Whats the difference with this Flexible Solar Panel?

1 - Australian Distributor Stock - Amptron is an well established AU Brand Name for all things Lithium Batteries, Solar and other Portable Power Solutions.

2 - This panel is only L-1723mm x W-530mm x H-3mm. This design lends itself to a lot more hard to fit applications such as Off Road Caravans, RV's & Camper Trailers.

3 - This panel features 21.8% Cell Efficiency. So you know this panel will produce up to 9.35 Amps with the correct wiring and controller setup.

4 - This Flexible Solar Panel comes complete with 4m of 2 Core 2.5 sqmm connection Cable and Male & Female MC4 connectors

5 - 5-year power output warranty: 5 year / 95% efficiency rate, 10 year / 90% efficiency rate, 25-year / 80% efficiency rate plus *1-year FREE RETURN TO BASE material and workmanship warranty

Overview:

The semi flexible solar panel is the perfect versatile energy companion for mobile applications. The thin profile provides low wind resistant and its extremely light weight makes it well suited to be used on yachts, boats, RVs, 4wd vehicles etc.

Each cell is tested and graded for power, low light performance and being free from micro cracks before going into module production. In-line monitoring is performed for pre and post lamination cell testing and laminate stability. The module design incorporates a superior 7 layer lamination process with a moisture protected border for trouble free performance over the module life.

• High efficiency Monocrystalline Cells.
• Ultra-thin & light weight.
• Outstanding electrical performance in higher temperatures and low irradiation.
• Robust moisture ingress protection.
• Rigid, waterproof junction Box.
• High performance Fluro Ethylene top film.

Specifications:

170W 12V Semi-Flexible Mono-crystalline Solar panel
Maximum power rating: Pmax 170 watts
Solar Panel dimensions: L-1723mm x W-530mm x H-3mm
Tolerance on power output: +/- 3.0 %
Current at max power: max 9.35 Amps
Voltage at max power: 18.18 Volts
Short circuit current: 9.91 Amps
Open circuit voltage: 21.44 Volts
Temperature Range: -40℃ to +80℃
Weight: 4.5kg

* AMPTRON warrants each AMPTRON branded solar panels sold by any of its authorised dealers or distributors worldwide, to be free of defects from the date of sale for 1 year. The warranty period starts at the time of purchase. If the original receipt is lost, the warranty will be based on the solar panel date code. The warranty covers failure due to defects in material or workmanship. Subject to the issues listed below, AMPTRON will repair or replace the solar panel and/or parts of the solar panel if the components in question are defective in materials or workmanship. In the unlikely event your solar panel fails, we will arrange to get it back to one of our labs to assess the solar panels and determine the cause of failure.

Amptron 170W 12V Flexible MonoCrystalline Solar Panel
