PREMIUM JOCKEY WHEEL WITH VERTICAL LOCKING PIN SWIVEL BRACKET

The AL-KO Premium 8" Heavy Duty Jockey Wheel is ideal for industrial or commercial applications. Added safety comes from the pull pin locking into the swivel bracket limiting lateral forces. With a 500kg static capacity it is a great companion for large plant trailers.

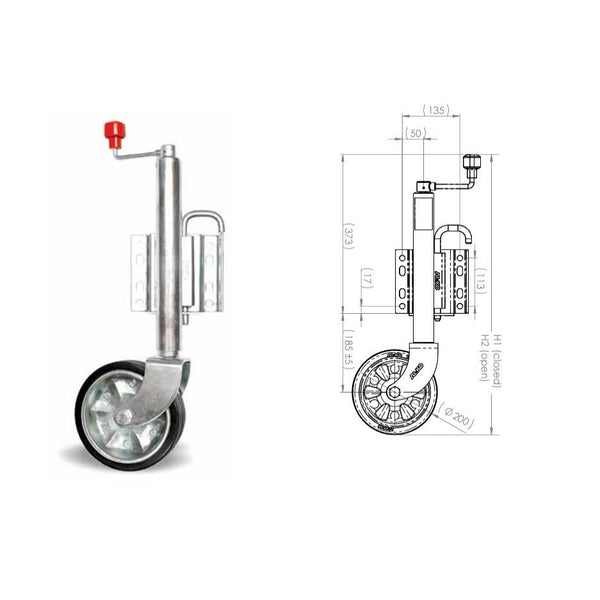

Specifications

Wheel Size (0): 200mm dia.

Mounting: Swivel

Static Capacity: 500 kg

Tube 0.0.: 48mm

Closed H1: 658mm

Open H2: 921 rim

Closed G1: 458mm

Open G2: 721 mm

U1, U2 55mm, 113mm

W: 35:-in

Weight: 11 kg

ALKO 8" 627500 Jockey Wheel Vertical Locking Pin Swivel Bracket 500kg Static
