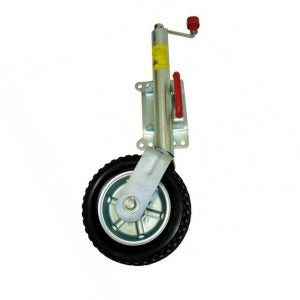

Jockey Wheel - 10" Wheel - With 3 Bolt Locking Pin Swivel Bracket

AL-KO 8” Standard Jockey Wheel with solid rubber wheel suitable for trailers, camper trailers, caravans, boat trailers, Toy Haulers, Car trailers and more

Ease of use is the benefit when selecting an AL-KO Swivel Bracket Jockey Wheel. No need to remove it from the trailer - just pull the release handle and the jockey wheel rotates into a suitable traveling position. This unique design is covered by Registered Design in Australia and New Zealand. The swivel bracket can be either welded or bolted to the drawbar. A selection of mounting holes allows the use of u-bolts to attach the jockey wheel to the trailer drawbar. Ideal for marine use.

Specifications:

Surface finish: Zinc Plated
Static Capacity: 400kg
Outer Tube Dia.: 48mm
Weight: 11kg
Wheel Dia.: 200mm
Min Spacing: 63mm
Height Closed:630mm
Height Open:880mm
Bottom of wheel to mounting plate center when closed: 320mm
Bottom of wheel to mounting plate center when closed: 570mm

ALKO 10" Jockey Wheel - With 3 Bolt Locking Pin Swivel Bracket JW250SL
