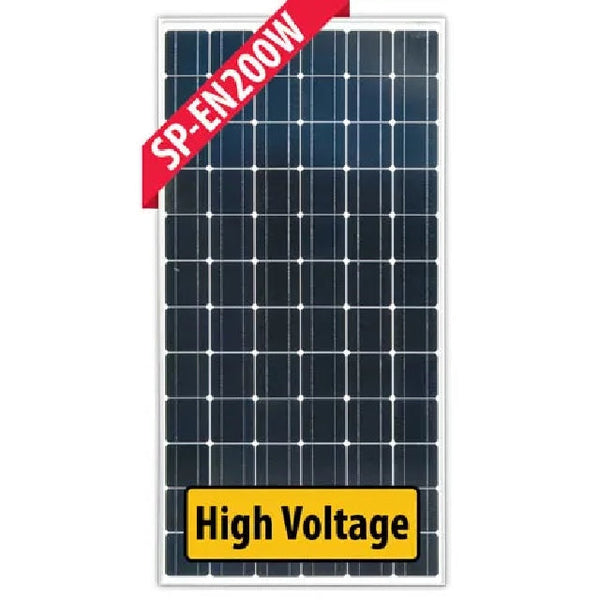

ENerdrive 200W 24V Fixed Mono Solar Panel, Available in Silver or Black Frame

Features

Enerdrives 200W Fixed Solar Panels are 43+VDC open circuit and are well suited to 12/24v installations (or 48v by series connections of panels).

PLEASE NOTE: SP-EN200W-24 are suitable for Charging 24V Battery System when using a PWM Solar Controller. For Charging a 12V Battery System a MPPT Solar Controller MUST be used.

A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included.

Enerdrive stocks a full range of spare cables. With a mass of factories developing solar panels around the world, the biggest choice is ‘Where to buy” & even more importantly “What quality and support am I getting”. Enerdrive can become your single point contact for all things relating to solar products, warranty and importantly that same level of support that we have provided
for many years with all Enerdrive products.

If you buy from us you will ALWAYS be dealing with Enerdrive for warranty, and we won’t hide behind supplier warranty statements or clauses. Enerdrives volume will allow us to ensure that any quality or warranty issue can be dealt with LOCALLY.

SPECIFICATIONS:

Enerdrive Part Number	SP-EN200W
Max Power Pm(W)	200
Power Tolerance %	- 1% ~ + 3%
Max Power Voltage Vm(V)	37.30
Max Power Current Im(A)	5.37
Open Circuit Voltage Voc(V)	43.7
Short Circuit Current Isc(A)	6.05
Max System Voltage (VDC)	1000
Dimensions (mm)	1580 x 808 x 40
Weight (kg)	15
Test Conditions	1000W/m² , AM1.5 , 25°C
