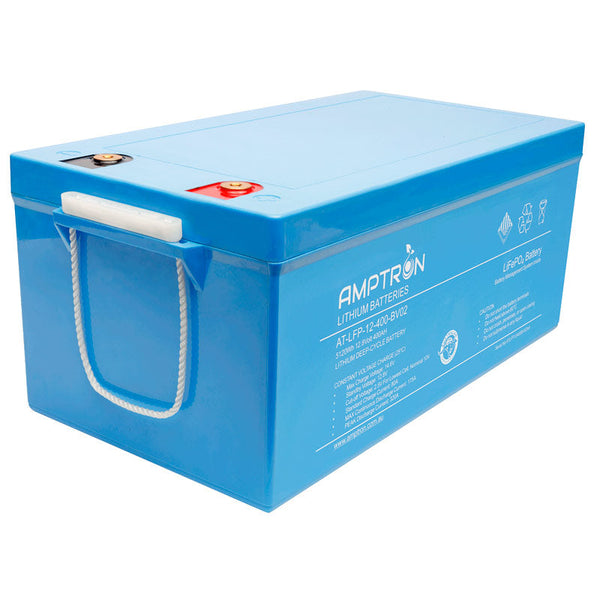

Amptron 12V 400Ah / 300A Continuous Discharge LiFePO4 Battery

AMPTRON® 12V 400Ah / 300A Lithium LiFePO4 Batteries are an alternative replacement (AR) for most applications currently using a deep cycle Gel, AGM or Flooded Lead Acid battery. The maximum continuous discharge current is 300A and peak discharge current 600A for 1 second.

These batteries are designed using only the highest quality components and are backed with our 4 year replacement warranty. This includes the use of a robust Battery Management System (BMS), Aluminium encased prismatic cells, solid busbar connectors and internal protection to reduce movement and damaging vibrations. Our batteries can also be placed on their sides providing versatile installation options.

The integrated Battery Management System is designed to monitor, protect, and optimise each cell within the battery. The BMS maximises the performance of the battery by automatically balancing the cells and protecting them from over charging, over discharging, over temperature, and excessive charge or discharge currents. Our integrated BMS allows our batteries to be used as an alternative replacement for most applications requiring deep cycle batteries, however if the charging system does not support a Lithium charge profile, there are some compromises – please contact Amptron for more information.

HEAVY DUTY – BUILT IN BATTERY MANAGEMENT SYSTEM

AMPTRON® Lithium batteries use a built-in Battery Management System (BMS) designed to automatically disconnect the charging or discharging circuits to prevent damage to the cells and internal electronics from abnormal operation and helps to ensure safe and accurate operation of the battery.

THE BMS PROTECTION FEATURES INCLUDE:

Low Voltage Protection Switch – Automatically disconnects the discharge circuit to prevent damage to the cells if the battery drains below a pre-set voltage.
Over Voltage Protection Switch – Automatically disconnects the charging circuit to prevent damage to the cells if the battery is being charged above a pre-set maximum voltage.
Short Circuit and Over Current Protection Switch – Automatically disconnects the discharge circuit if the load draws currents above pre-set limits.
Reverse Polarity Protection Switch – Automatically disconnects the charge and discharge circuits if a reverse polarity condition is detected.
Thermal protection – Built-in thermal sensors will automatically disconnect the charge and discharge circuits when excessive temperatures are detected.

CELL BALANCING
The BMS balances the cells through top-end balancing and will discharge cells that exceed 3.65V during charging.

INTERNAL CELL SAFETY

THERMAL FUSE: Our latest prismatic cell technology is manufactured with an internal thermal safety fuse between the anode and cathode that will break and disconnect in the unlikely event the cell would begin to overheat.

SAFETY VENT: Each cell has a high-pressure safety vent that will flip open to release energy and prevent explosion.

FLAME RETARDANT ELECTROLYTE: Our cells are manufactured with a flame retardant additive in our electrolyte.

SPECIFICATION

Item	Specification	Description/Remark
Model	AT-LFP-12-400DV01	12V 400Ah / 300A Continuous Discharge Lithium LiFePO4 battery
Chemistry	Lithium Iron Phosphate (LiFePO4)
Battery dimensions	L-520mm x W-268mm x H-228mm
Weight	38kg
Cell type	3.2V 105Ah Prismatic cells
Battery module	16 pcs 3.2V 105Ah cells, 4 cells in parallel & 4 cells in series
Casing material for single cell	Aluminium casing
Standard capacity（0.2C5A）	420Ah / 5376Wh
Cycle Life	2000 cycles at 100% Depth of Discharge (DoD)	Under normal usage where the DOD is <80%, cycle life is expected to be up to 5000 cycles
Rated voltage	12.8V	Working voltage per cell: 3.2V
Max Charge voltage	14.6V	Max. charge voltage per cell: 3.65V
Cut-off volage	10V-11.2V	Cut-off is triggered when the first cell reaches 2.50V
Depth of discharge (DoD)	100%	Batteries can be discharged to 100% of the rated capacity
Standard charge current	80A	0.2C
Charging time	Approximately 5 hours	When charging from low voltage cut-off point
Optimum charge current range	80A (0.2C) to 160A (0.4C)	Cell max voltage < 3.9V
Rapid charging	Max. charge current 300A (0.75C)	Temperature increase falling within 15°C is normal. Over 15°C will affect the service life of the cells.
Max continuous discharge current	300A	0.75C, cell min voltage> 2.0v
Peak discharge current	600A	1.5C (1 second)
Discharge performance in normal temperature	80A (0.2C) ≥ 100% 300A (0.43C) ≥90％
Operating temperatures	Standard 0℃～45℃ Discharge -20℃～65℃ Storage -20℃～45℃
Impedance (Max, at 1000Hz.)	≤ 20mΩ
Storage performance	Capacity can be kept ≥ 80% in storage for 12months	Battery should be kept at -20℃ ～ 45℃ where it’s dry, clean and well-ventilated.
Connecting Terminals Pos (+) & Neg (-)	M8
IP Rating (Ingress Protection)	IP65	Protected from total dust ingress & Protected from low pressure water jets from any direction
